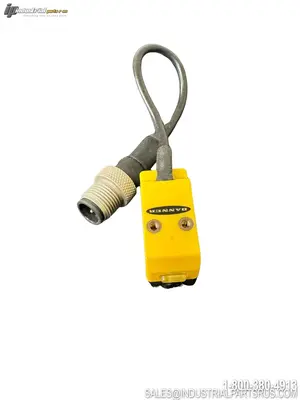

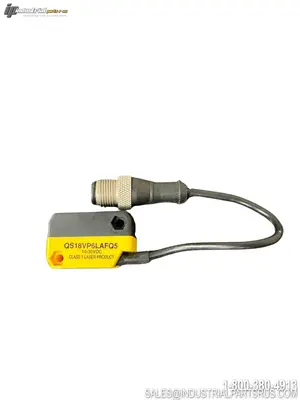

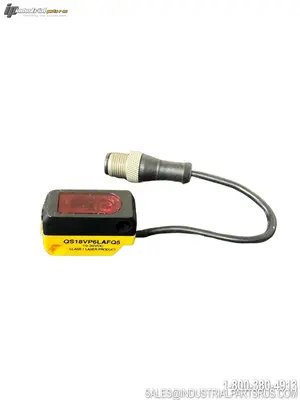

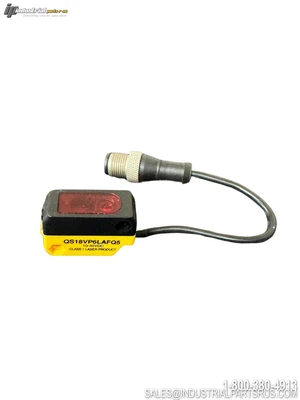

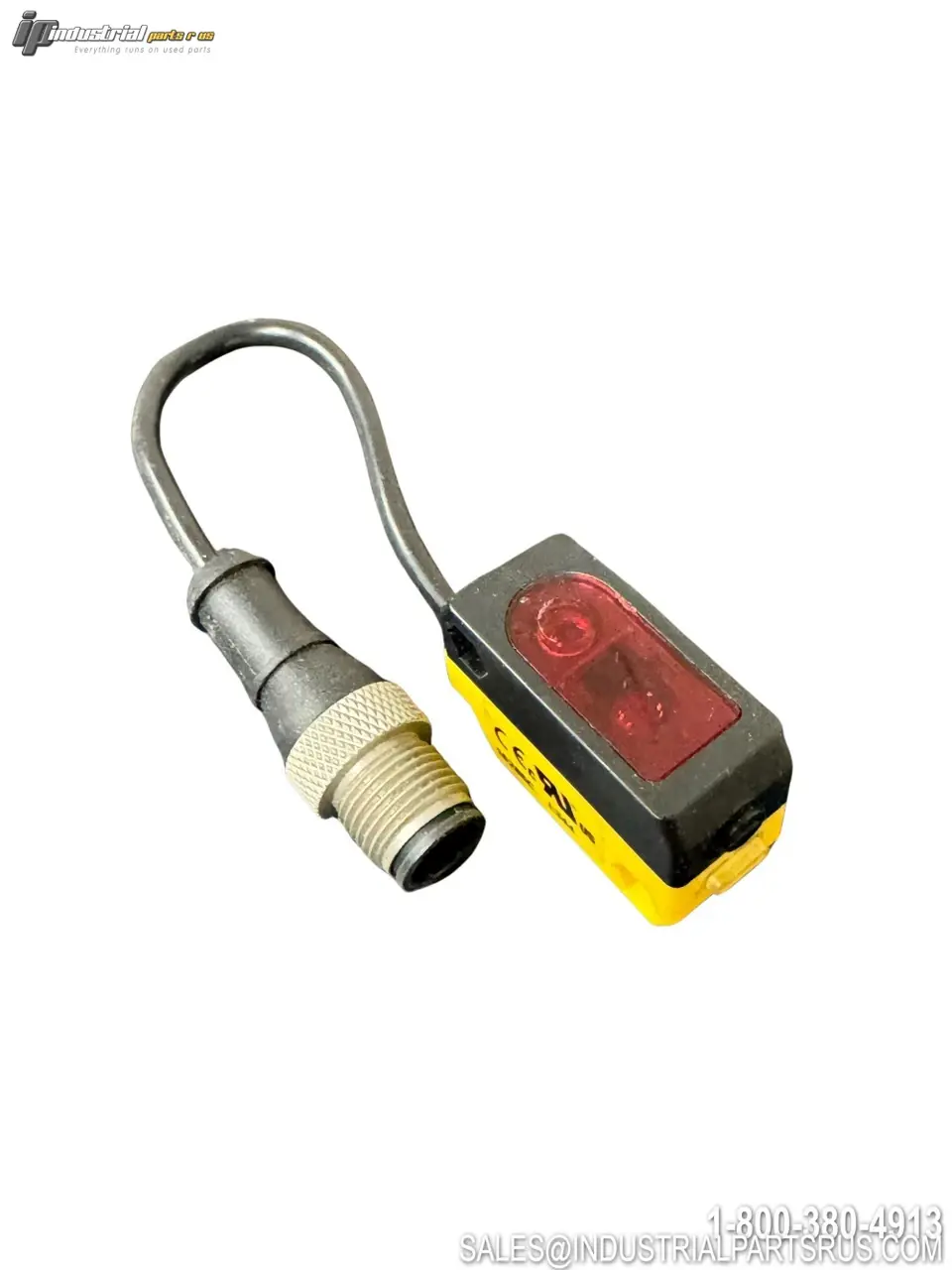

USED BANNER QS18VP6LAFQ5

The Banner Engineering QS18VP6LAFQ5 is a WORLD-BEAM QS18 Series laser adjustable-field photoelectric sensor featuring a Class 1 visible red laser (650 nm) with mechanically screw-adjustable background suppression. It delivers exceptional optical performance in a compact rectangular housing, with a sensing cutoff distance adjustable between 30 and 150 mm. The sensor provides complementary (SPDT) solid-state PNP output and connects via a 150 mm (6 in) M12 Euro-style pigtail quick-disconnect connector, making it well-suited for precision automation, manufacturing, and packaging applications.
Specification
Value
Brand
Banner Engineering
Model / Part Number
QS18VP6LAFQ5
Manufacturer Part Number (Alt)
73191
Product Series
WORLD-BEAM QS18
Sensor Type
Photoelectric — Laser Adjustable-Field Background Suppression
Sensing Mode
Adjustable-Field (Mechanically Adjustable Background Suppression)
Sensing Range (Min)
30 mm
Sensing Range (Max)
150 mm
Cutoff Adjustment
Multi-turn mechanical screw adjustment
Light Source
Visible Red Laser, Class 1, 650 nm wavelength
Supply Voltage
10–30 VDC
Output Type
Complementary Solid-State PNP (SPDT, NO/NC)
Output Current (Max)
100 mA
Output Operation
Light-ON or Dark-ON (selectable)
Response Time
<1 ms
Connection Type
4-Pin Euro-Style M12 QD Pigtail Connector, 150 mm (6 in) cable
Number of Pins
4
Housing Shape
Rectangular
Housing Material
Thermoplastic (ABS)
Lens Material
Acrylic
IP Rating
IP67 / NEMA 6
Operating Temperature
-10°C to +50°C
Status Indicators
360° visible LED indicators
Certifications
RoHS Compliant, CE, UL Recognized (UR)
Washdown Rated
No
Clear Object Detection
No
Hazardous Area Rated
No
Typical Applications
Industrial automation, manufacturing, packaging, medical
We warranty all items for 30 days from date of purchase.
