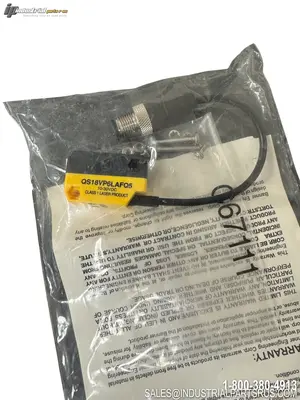

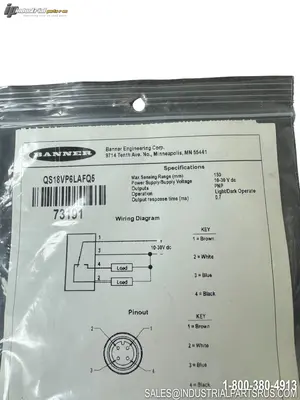

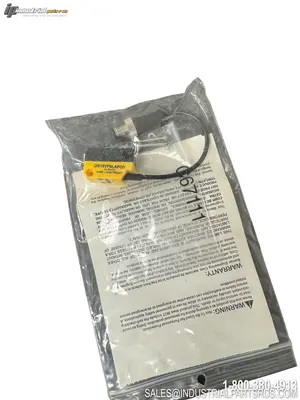

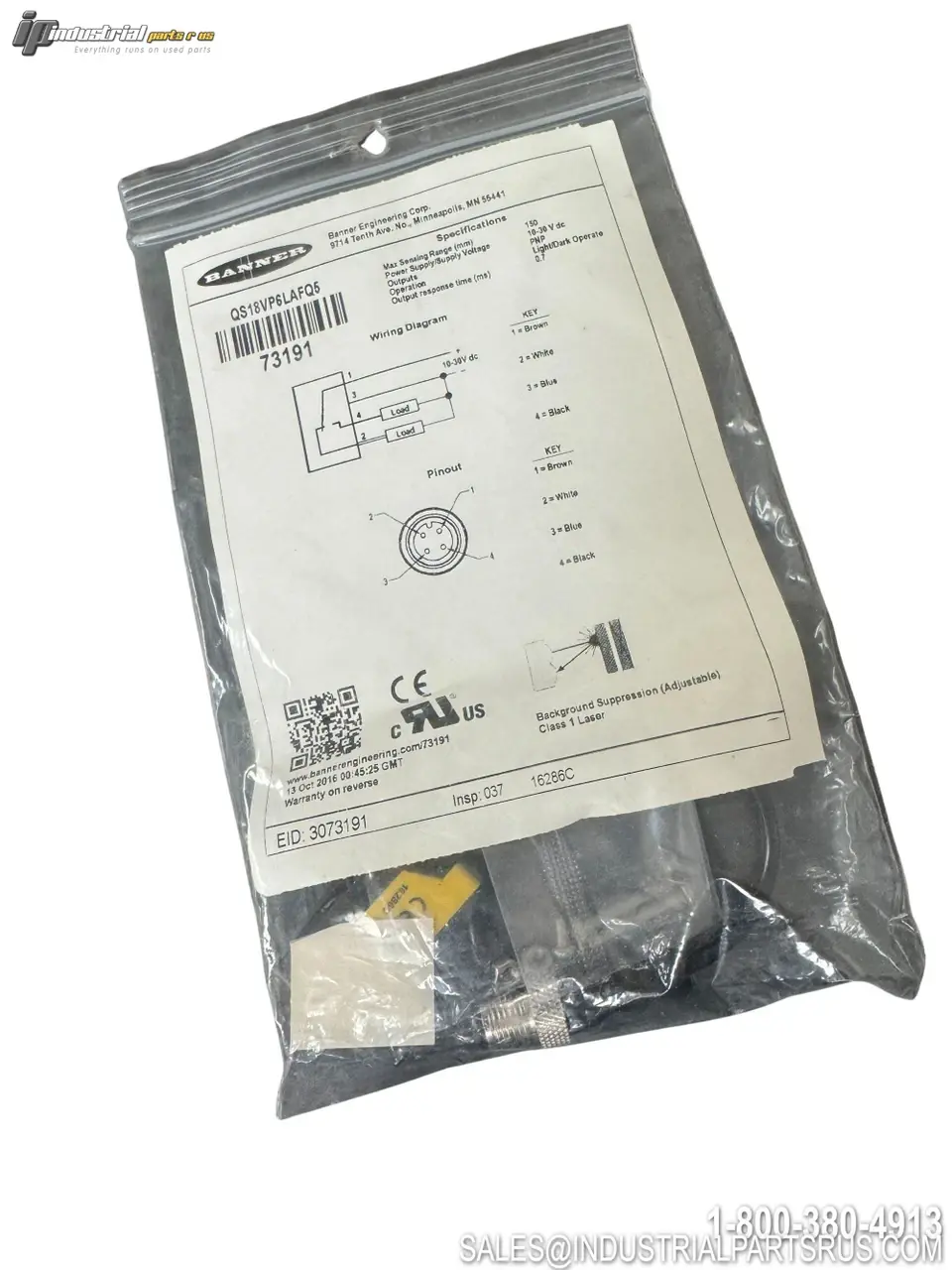

NEW BANNER QS18VP6LAFQ5

The Banner Engineering QS18VP6LAFQ5 is a WORLD-BEAM QS18 Series compact photoelectric sensor utilizing a Class 1 visible red laser (650 nm) with mechanically adjustable background suppression. It features a screw-adjustable cutoff distance ranging from 30 to 150 mm, complementary solid-state PNP (Light-ON/Dark-ON) output, and a 6-inch (150 mm) M12 Euro-style pigtail quick-disconnect connector. The sensor is housed in a durable thermoplastic rectangular body rated IP67/NEMA 6, making it well-suited for demanding manufacturing, packaging, and industrial automation applications.
Specification
Value
Brand
Banner Engineering
Model / Part Number
QS18VP6LAFQ5
Manufacturer Part Number (Alt)
73191
Product Series
WORLD-BEAM QS18
Sensor Type
Photoelectric – Laser Adjustable-Field Background Suppression
Sensing Range
30 – 150 mm (cutoff adjustable)
Supply Voltage
10–30 VDC (12 VDC / 24 VDC nominal)
Output Type
Complementary Solid-State PNP (SPDT – Light-ON & Dark-ON)
Output Current
100 mA
Light Source
Class 1 Visible Red Laser, 650 nm
Laser Output Power
0.065 mW
Response Time
<700 µs (0.7 ms)
Adjustment Type
Multi-turn mechanical screw (potentiometer)
Connection Type
4-Pin Euro-Style M12 Pigtail QD, 150 mm (6 in) cable
Housing Material
Thermoplastic (ABS)
Lens Material
Acrylic
Body Style
Rectangular / Block, Compact
IP Rating
IP67 / NEMA 6
Operating Temperature
-10°C to +50°C
Indicator
LED, 360° visible
Mounting
Side Screw Mounting
Target Detection
Opaque & Translucent Objects
Certifications
CE, UL Recognized (UR), RoHS Compliant
We warranty all items for 30 days from date of purchase.
