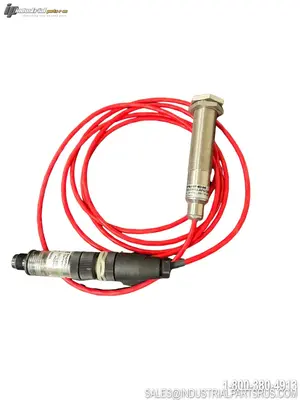

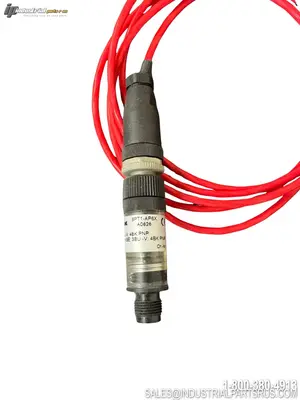

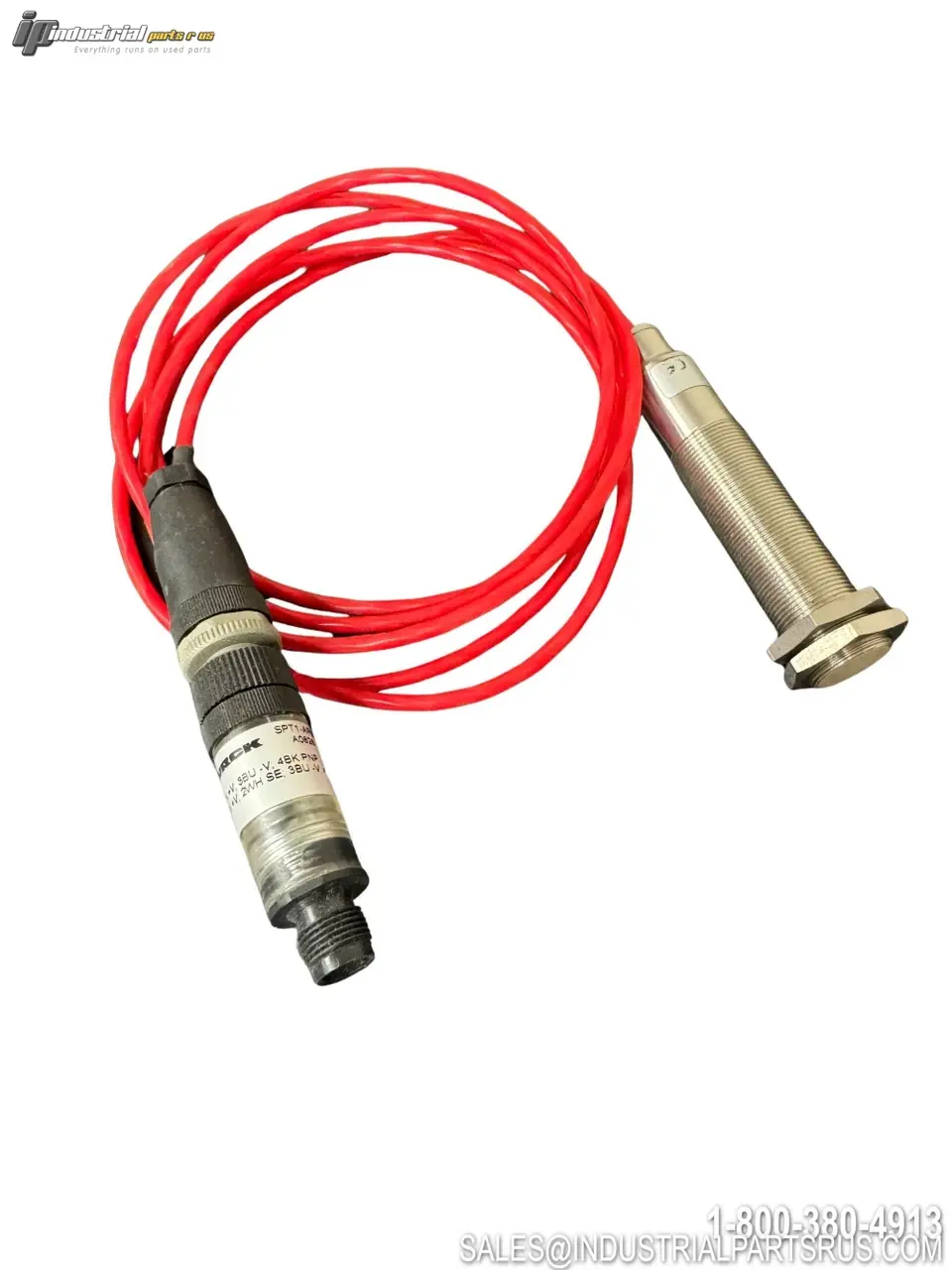

USED TURCK SPT1-AP6X

The Turck SPT1-AP6X (ID: A0626) is a SmartPlug multifunctional inline adapter designed to extend the functionality of standard inductive sensors by adding a programmable ON-delay or OFF-delay timer. It connects in-line between the sensor and the control system using 4-pin M12 x 1 male and female connectors, making it tool-free to install without rewiring. The device also amplifies switching capacity and can be used to stretch very short PLC-level signals to usable durations, with delay times adjustable from 1 to 65,000 ms via a teach input.
Specification
Value
Brand
Turck
Model / Part Number
SPT1-AP6X
Manufacturer Ident. No.
A0626
Product Type
SmartPlug – Inline Sensor Adapter with Timer
Main Function
Programmable ON-Delay / OFF-Delay (Input/Output Delay)
Timer Delay Range
1 – 65,000 ms (1 ms to 65 seconds)
Operating Voltage
10–30 VDC (nominal 12 VDC / 24 VDC)
Output Function
4-wire, PNP
Max. Output Current
400 mA
Switching Capacity
Amplified (load amplification function)
Teach Input
Yes – programmable via teach
Display / Indicator
LED indicator
Male Connector
4-pin M12 x 1 male (connects to PLC/controller side)
Female Connector
4-pin M12 x 1 female (connects to sensor side)
Housing Shape
Straight
Housing Material
Plastic, PBTP
Housing Diameter
Ø 20 mm
Overall Length (Dimensions)
60 mm
Degree of Protection (IP Rating)
IP67
Ambient Temperature (Operating)
0 °C to +60 °C
Protection Functions
Short-circuit (pulsed), Overload, Reverse polarity
Compatible Sensors
Standard inductive sensors (M12 connector)
Alternate Part Number
SPT1AP6X
We warranty all items for 30 days from date of purchase.
