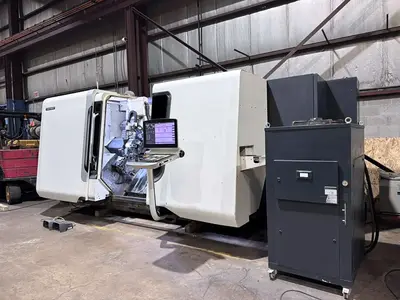

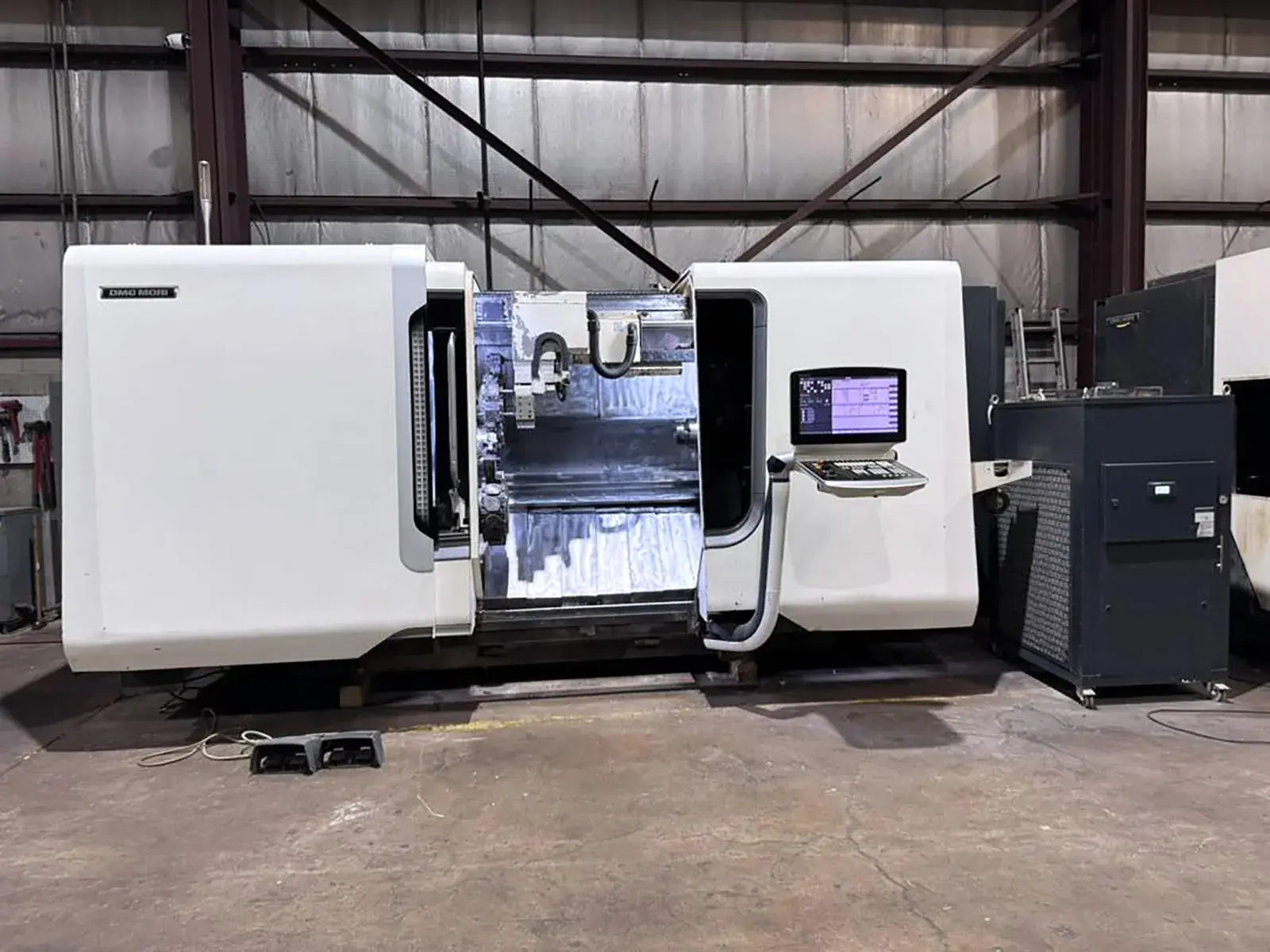

USED 2016 DMG MORI CTX BETA 1250 4A
Overview
This used 2016 DMG Mori CTX BETA 1250 4A is a heavy-duty CNC turn-mill machining center built for high-precision, complex part production. Combining turning and milling in one setup, it reduces handling and boosts productivity. Ideal for automotive, aerospace, energy, oil & gas, medical, and precision job-shop applications.
Specs
DMG MORI CELOS Control with Siemens
Twin Concept – 4-Axis Simultaneous Production Turning
Main Spindle & Counter Spindle
C-Axis on Main Spindle
C-Axis on Counter Spindle
LNS Quick Load Servo S3T-L Bar Feeder
Twin 12-Station VDI 40 Turrets
Driven / Live Tooling
Y-Axis on Upper Turret
Parallel Machining Capability
Complete Main-to-Sub Spindle Part Transfer Capability
Hydraulic Shuck Chuck on Main
Collet Chuck on Sub-Spindle
Foot Pedal Controls Chip Conveyor
Coolant System
Parts Catcher/Conveyor
Chiller
Maximum Workpiece Diameter: 13.4"
Maximum Workpiece Length: 44.7"
Maximum Bar Capacity: 4.0"
Upper X-Axis Travel: 11.8"
Upper Y-Axis Travel: 4.7"
Z-Axis Travel: 46.1"
Main Spindle Speed: 5,000 RPM
COUNTER SPINDLE Speed: 5,000 RPM
Main Spindle Power: Up to 64.4 HP / 48 kW
Main Spindle Torque: Up to 265.5 ft-lb / 360 Nm
Turrets: (2) 12-Station VDI 40
Driven Tool Speed: 4,000 RPM standard configuration
Driven tool power: 15.2 HP / 11.3 kW
Approx. Machine Weight: 31,900 lbs. (14,500 kg)
Equipped With
DMG MORI CELOS Control with Siemens
Twin Concept – 4-Axis Simultaneous Production Turning
Main Spindle & Counter Spindle
C-Axis on Main Spindle
C-Axis on Counter Spindle
LNS Quick Load Servo S3T-L Bar Feeder
Twin 12-Station VDI 40 Turrets
Driven / Live Tooling
Y-Axis on Upper Turret
Parallel Machining Capability
Complete Main-to-Sub Spindle Part Transfer Capability
Hydraulic Shuck Chuck on Main
Collet Chuck on Sub-Spindle
Foot Pedal Controls Chip Conveyor
Coolant System
Parts Catcher/Conveyor
Chiller
