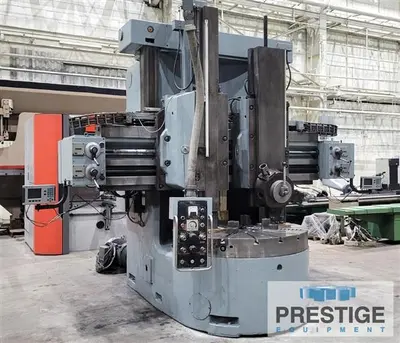

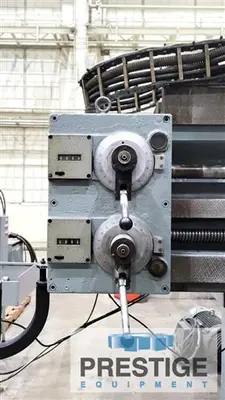

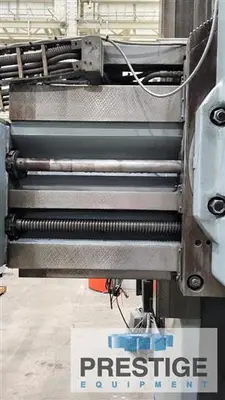

USED 1976 SUMMIT 60 VBM

Specifications:
Table Diameter: 57"
Max. Turning Diameter: 63"
Max. Height Under Rail: 47"
Cross Rail Vertical Travel: 31.5"
Ram Stroke: 48"
Turret Stroke: 36"
Ram & Turret Swivel: +/- 35 Degrees
Table Speeds, Infinitely Variable: 2-200 RPM
Table Speed, Gear Ranges: 3
Max Weight of Workpiece: 17,600 Lbs.
Machine Dimensions, L x D: 160" x 180"
Machine Height: 161"
Machine Weight: 47,500 Lbs.

Equipped With:

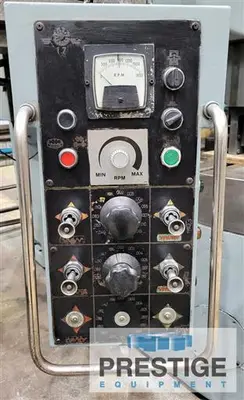

Full Pendant Control
Acu-Rite Digital Readouts on Ram & Turrets

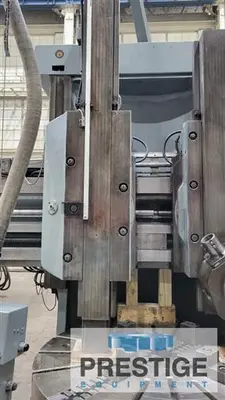

Ram & Turret
57" 4-Jaw Chuck

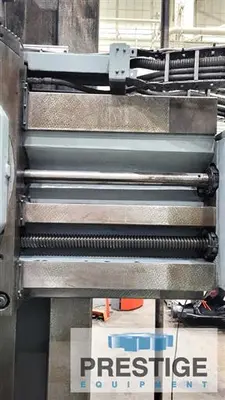

Hardened Ways on Cross Rail
Coolant Pan & Pump
75 HP Main Drive Motor

Features:
Full Pendant Control
Acu-Rite Digital Readouts on Ram & Turret

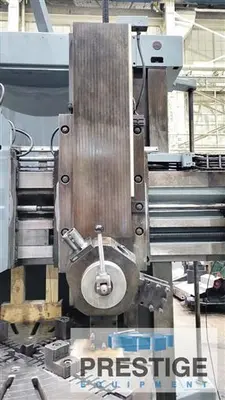

Left Hand Vertical Swiveling Ram
Right Hand Vertical 5-Position Turret
57" Diameter 4-Jaw Chuck
