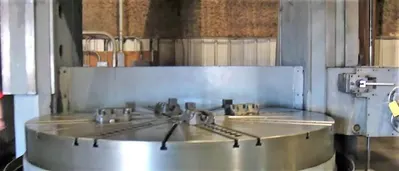

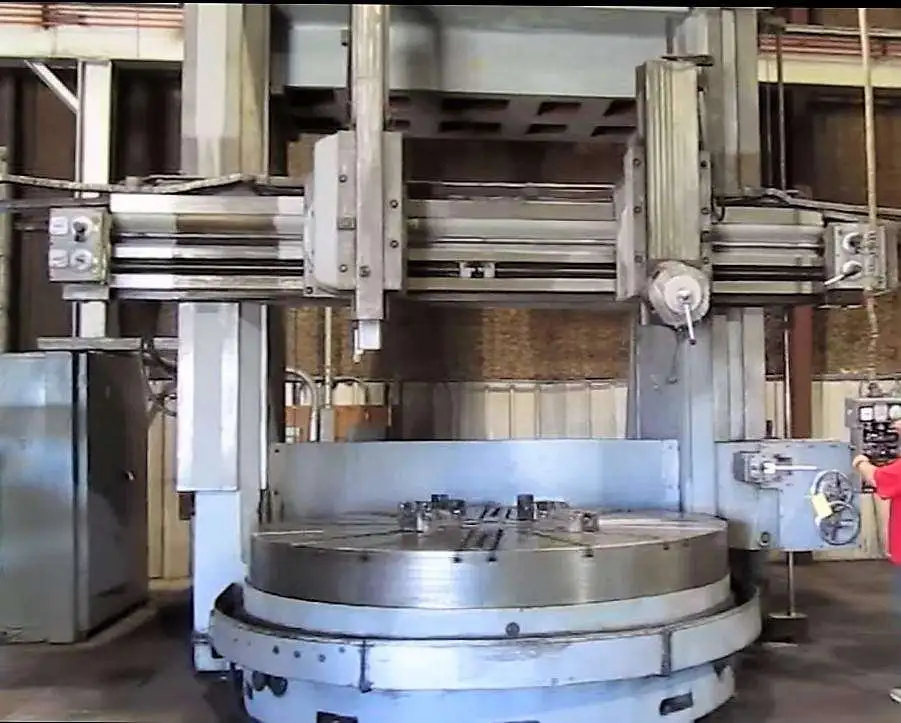

USED 1980 SUMMIT SC 3200

CAPACITIES:
Table Diameter: 118.11"
Max. Swing Capacity w/ Vertical Head: 129"
Maximum Swing with Side Head: 124"
Maximum Turning Height on Table: 90.5"
Minimum from Rail to Top of Table: 12.5"
Maximum from Rail to Top of Table: 90"
Maximum Work Piece Weight: 40,000 Lbs.
Turret Stroke: 30"
Ram Stroke: 47.25"
Swivel of Each Vertical Head: 35 R - 35 L
Table Speeds(Inf Variable): 1-92 RPM
Feeds (16): .002-.200 IPM
Rapid Traverse: 118 IPM
Approximate Dimensions: 208" x 220"
Overall Height: 212"
Approximate Weight: 105,000 Lbs.

Equipped With:

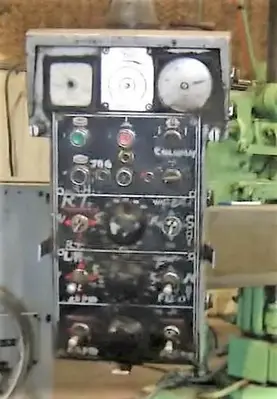

Full Pendant Controls

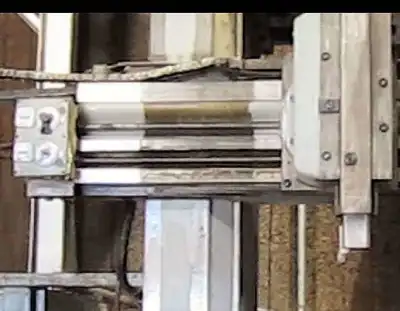

Right Hand (5) Position Turret

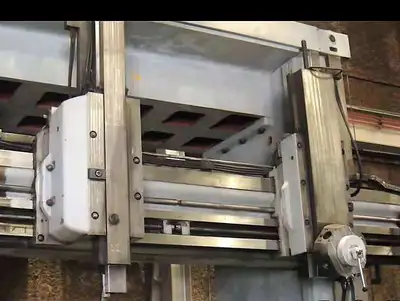

Left Hand Ram
Side Head
65 HP DC Table Motor

Features:
Swivel Left Hand Ram Head
Swivel Right Hand Turret
Right Hand Side Head
Full Pendant Control
