| Table Dia | 78.74" | 2,000 mm |
| Swing | 82.67" | 2,099.8 mm |
| Work Ht-U/R | 59.05" | 1,499.9 mm |
| Power | 89 hp | 66.4 kW |
| RPM | 140 RPM | 140 RPM |
CAPACITY:
Table Diameter: 78.74"
Maximum Turning Diameter: 82.67"
Maximum Height Under Rail: 59.05"
Turret Stroke: 30"
Ram Stroke: 36"
Head Swivel: 35 Degrees
Table Speeds: 1.55-140 RPM
Feeds: .002-.199 IPR
Rapid Feed: 98 IPM
Equipped With:

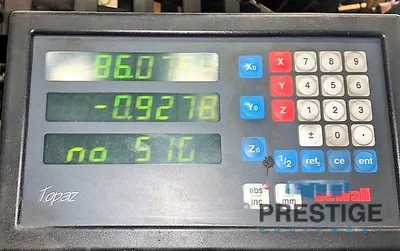

Newall Topaz 2-Axis Digital Readout
Full Pendant Controls
Hydraulic Tracer
Left Hand Ram
5-Position Right Hand Turret
89 HP Main Drive Motor
NOTE:
Inspect in Plant Under Power
Features:
Newall Topaz 2-Axis Digital Readout
Pendant Control
Left Hand Ram
5-Position Right Hand Turret
