Doosan Lynx 2100LYB – 2018
Overview

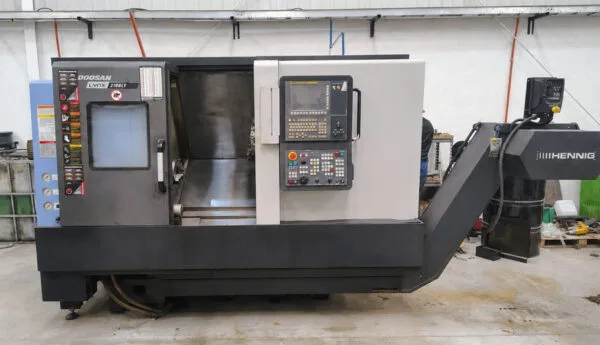

2018 Doosan LYNX 2100LYB
CNC Lathe
SPECIFICATIONS
# Axis: 4
Swing: 23.6 in
Turning Diameter: 11.8 in
Center Distance: 20.1 in
Chuck Size : 8 in
Bar Capacity: 2.6 in
X Axis Travel : 8.1 in
Y Axis Travel: 4.1 in
Z Axis Travel : 22 in
C Axis Index: 0.001°
Rapid Traverse (X/Y/Z) : 1181/343/1418 ipm
Spindle Nose: A2-6
Spindle Speed: 4,500 rpm
Main Motor: 20 hp
Tailstock: yes
Y Axis: yes
Live Tooling: yes
Live Tooling Speed : 6,000 rpm
Live Tooling Motor: 5 hp
Sub Spindle: no
Turret Capacity : 24
Machine Dimensions: 114″ x 68″ x 76″
Machine Weight : 10000 lb
EQUIPPED WITH
– Fanuc CNC Control
– Chip Conveyor
– Coolant Tank
– Parts Catcher
– Tool Presetter
– Live Tooling
– Y Axis
– Programmable Tailstock
– Machine installed in 2019
