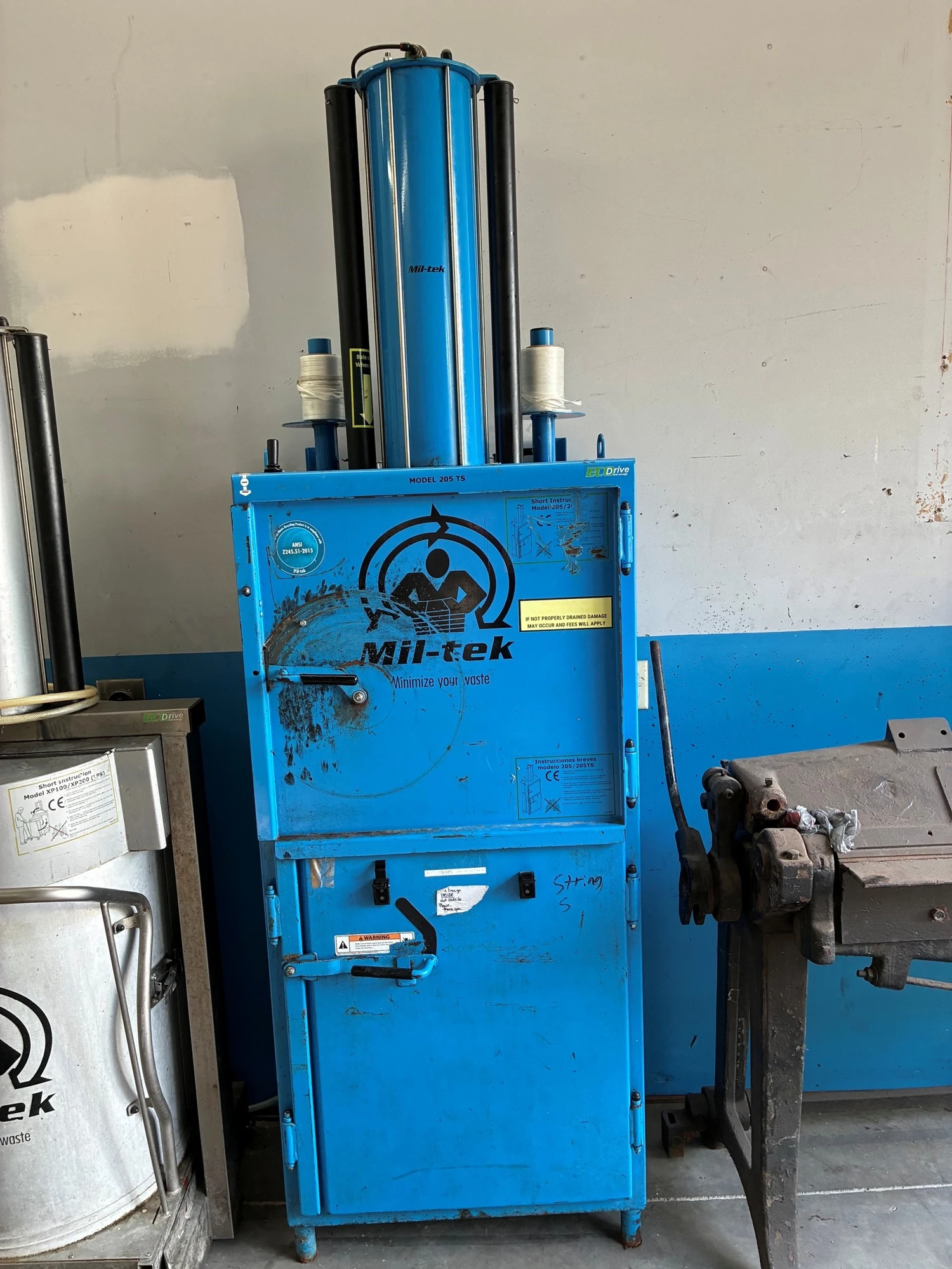

USED 2014 MIL-TEK 205 TS

2014 Mil-tek Model AP.205.TS  (25" x18" small pneumatic vertical baler)  (L26-09.22)

  ( compressed air neede to operate this machine - (requires 116 – 145 PSI / 8 – 10 bar)

is a compact, pneumatically-powered vertical waste baler specifically

designed to crush and bundle loose cardboard and plastic waste.

Price FOB Hialeah Miami FL. loaded on your truck...................US$3,500
Instead of using traditional hydraulic oil, it runs entirely on compressed air,

which makes it highly energy-efficient, oil-free, and exceptionally quiet. It features

a very small floor footprint (roughly 0.45 square meters) but uses an elongated

vertical chamber to pack large amounts of material into tightly bound, manageable block
Operational & Performance Specs
Power Source: Compressed air (requires 116 – 145 PSI / 8 – 10 bar)

Pressing Force: 4,960 lbs (approx. 2,250 kg) at 116 PSI

Pressing Cycle: 10 – 20 seconds

Degree of Compaction: 85% – 90%

Noise Level: < 70 dB(A) (commonly runs between 57-60 decibels)
???? Bale & Chamber Dimensions
Bale Size (H x W x D): 33” x 25.5” x 17.75” (approx. 840 x 650 x 450 mm)

Cardboard Bale Weight: Up to 110 lbs (50 kg)

Plastic Bale Weight: Up to 220 lbs (100 kg)

Door Opening (H x W): 16” x 25.75” (405 mm x 655 mm)

???? Machine Footprint & Weight


Height: 96.25” (2,445 mm)

Width: 29.37” (745 mm)

Depth: 21.25” (540 mm)

Net Weight: 529 lbs (240 kg)

Plastic bales: Up to 100–120 kg (220–264 lbs)

Cardboard bales: Up to 50 kg (110 lbs)
