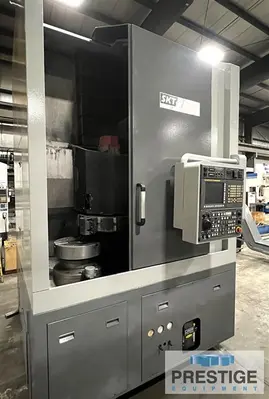

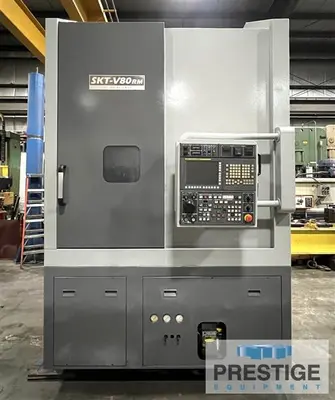

USED 2010 HYUNDAI WIA SKT-V80RM
Overview
Specifications
| Table Dia | 18" | 457.2 mm |
|---|---|---|
| Swing | 35" | 889 mm |
| Work Ht-U/R | 31.5" | 800.1 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 2,000 RPM | 2,000 RPM |
SPECIFICATIONS:
Maximum Swing: 35"
Max Turning Diameter: 31.5"
Maximum Turning Length: 31.5"
Table Diameter: 18"
X-Axis Travel: 17.3"
Z-Axis Stroke: 31.9"
Spindle Speeds: 2-2000 RPM
Spindle Motor: 40 HP / 29 HP
Spindle Nose: A2-11 (ISO)
Milling Spindle Speeds: 3000 RPM
Milling Spindle Motor: 10 HP / 7 HP
C-Axis: .001 degrees
Machine Footprint: 109" x 78"
Machine Height: 128"
Machine Weight, Approx.: 21,500 lbs
Machine Electrics: 220/3/60
Equipped With:

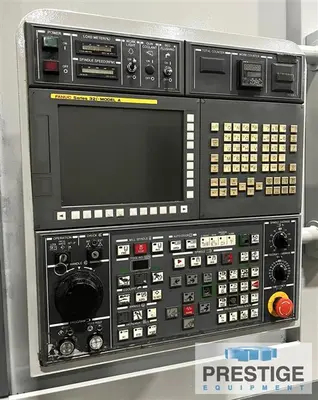

Fanuc 21i-TB CNC Control

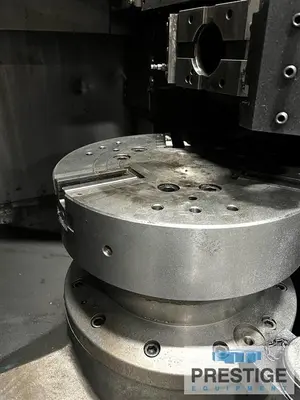

18" Hydraulic Chuck

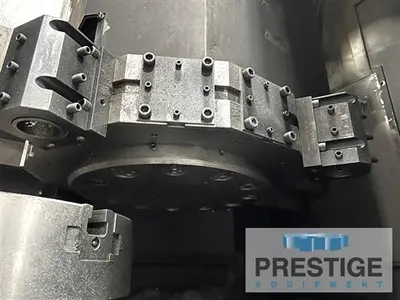

12-Position Turret
Live Milling
C-Axis Table for Milling & Drilling Operations
Angular and Straight Milling Holder

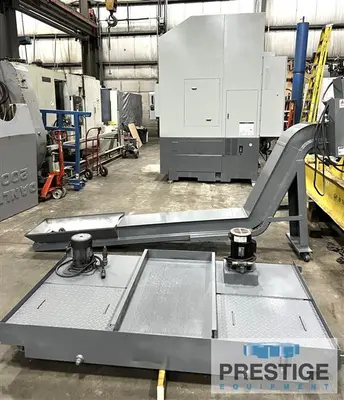

Chip Conveyor
Features:
Fanuc 21i-TB CNC Control
18" Hydraulic Chuck
12-Position Turret
Live Milling
C-Axis Table for Milling & Drilling Operations
Angular and Straight Milling Holder
Chip Conveyor
