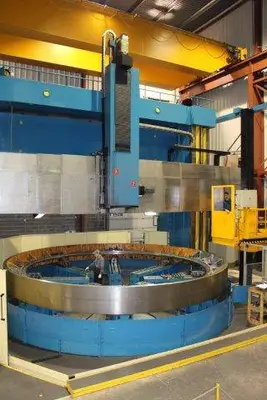

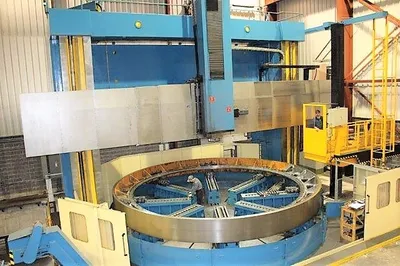

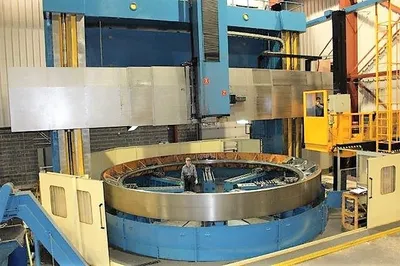

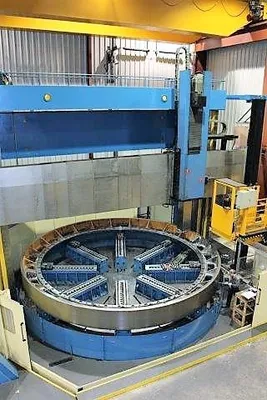

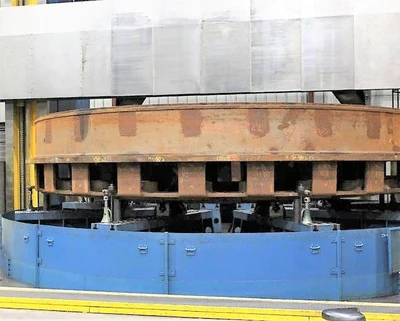

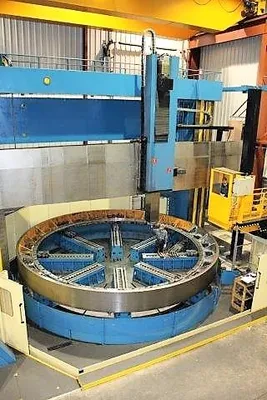

USED 2009 CKX 5280 X40/160
Overview
Specifications
| Table Dia | 248.03" | 6,300 mm |
|---|---|---|
| Swing | 314.96" | 8,000 mm |
| Work Ht-U/R | 157.48" | 4,000 mm |
| Power | 167 hp | 124.5 kW |
| RPM | 31.5 RPM | 31.5 RPM |
SPECIFICATIONS:
Table Diameter: 248.03"
Turning Diameter: 314.96"
Maximum Turning Height: 157.48"
Maximum Stroke of Vertical Rams: 98.42"
Ram Cross Section: 15.74" x 15.74"
Cross Rail Travel: 137.79"
Table Load Capacity: 160 Tons
Table Speed Ranges: .315-31.5 RPM
MILLING SPINDLE:
Table Indexing and Milling Speeds: .0002-.2 RPM
Table Indexing: .001 Degrees
Milling Spindle Taper: ISO #50
Milling Spindle Speeds, Max: 800 RPM
Milling Spindle Motor: 46 HP
FLOOR SPACE & MACHINE WEIGHT:
Machine Footprint: 595" x 410"
Machine Height: 488"
Machine Weight: 350 Tons
Equipped With:
Siemens 840DE CNC Control
Ram With Live Spindle
Turning, Milling, Drilling & Threading Cycles
Heidenhain Rotary Encoder
Right Angle Head
Table Outrigger Supports for 8 Meter Turning
Independent Elevating Operator Platform
Steel Sliding Way Covers
Chip Conveyor
167 HP Main Motor
NOTES:
Inspect In Plant Under Power!
Features:
Siemens 840DE CNC Control
Turning, Milling, Drilling & Threading Cycles
Ram With Live Spindle
Right Angle Head
Table Outrigger Supports for 8 Meter Turning
