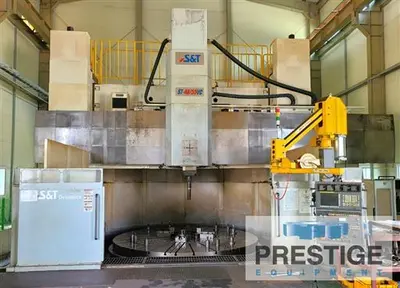

USED 2012 S & T DYNAMICS ST40/55VC
Overview
Specifications
| Table Dia | 157.48" | 4,000 mm |
|---|---|---|
| Swing | 216.53" | 5,499.9 mm |
| Work Ht-U/R | 102.36" | 2,599.9 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 1,500 RPM | 1,500 RPM |
SPECIFICATIONS:
Table Diameter: 157.48"
Maximum Swing: 216.53"
Height Under Rail: 102.36"
X-Axis Travel of Ram: 114.17"
Z-Axis Ram Stroke: 59.05"
Ram Cross Section, Square: 15.74" x 15.74"
Milling Spindle Speed: 15 - 1,500 RPM
Taper in Ram: #50
Milling Spindle Motor: 30 HP/34 HP
Table Speeds, Max: 60 RPM
Table Roation, C-Axis: .001°
Table Table Capacity: 45 TON
Table Motor: 80 HP / 100 HP
Machine Footprint: 439" x 390"
Machine Height: 350"
Machine Weight, Approx.: 308,000 lbs
Equipped With:

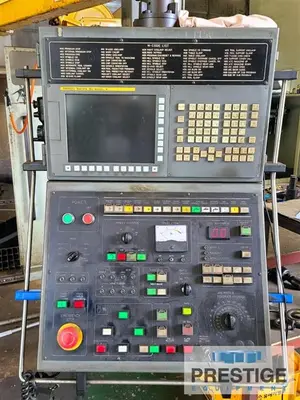

Fanuc 31i-A CNC Control
Ram With Live Milling

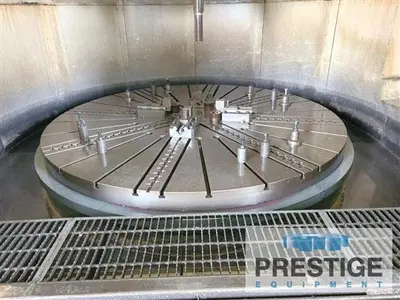

C-Axis Table

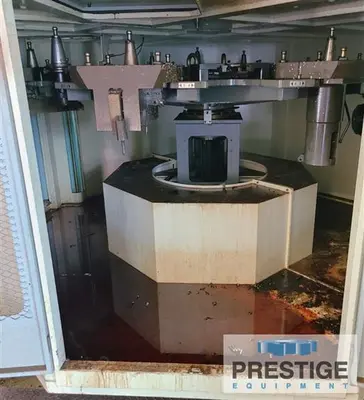

16-Station Automatic Tool Changer
Through Spindle & Flood Coolant
Fanuc Servo Motors & Drives on All Axis
Chip Conveyor
80/100 HP Fanuc AC Digital Spindle Drive Motor
Features:
Fanuc 31i-A CNC Control
Ram With Live Milling
C-Axis Table
16-Station Automatic Tool Changer
Through Spindle & Flood Coolant
Chip Conveyor
