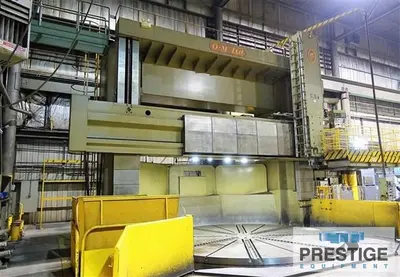

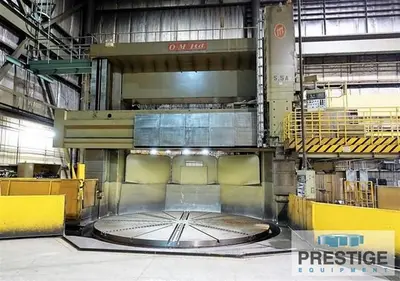

USED 1995 O-M LTD TMD 55/60N
Overview
Specifications
| Table Dia | 216.53" | 5,499.9 mm |
|---|---|---|
| Swing | 236.22" | 6,000 mm |
| Work Ht-U/R | 145.66" | 3,699.8 mm |
| Power | 100 hp | 74.6 kW |
| RPM | 45 RPM | 45 RPM |
CAPACITY:
Table Diameter: 216.53"
Maximum Turning Diameter: 236.22"
Maximum Turning Height: 145.66"
Horizontal Travel of Rail Head: 135.82"
Vertical Travel of Cross Rail: 102.36"
Ram Stroke: 78.74"
Ram Cross Section: 11.02"
Table Speed (3- Ranges): .3-45 RPM
Table T-Slots (Nominal)................ 1.65": 1.65"
Table Weight Capacity: 132,277 Lbs
Table Motor: 80 HP / 100 HP
Equipped With:

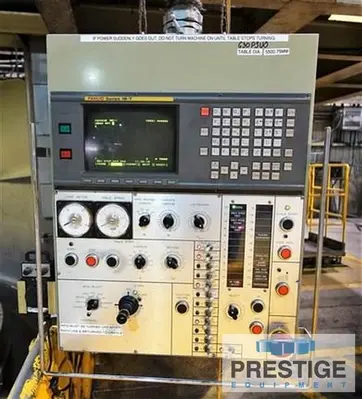

Fanuc 18-TB CNC Control
Dual Operator Controls
T-Slotted Table with (4) Face Plate Type Jaws

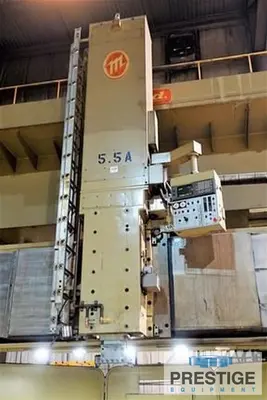

Vertical Ram with Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation

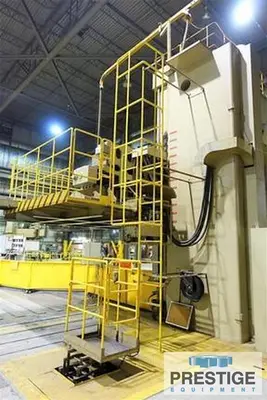

Independent Operator Platform and Lift
Steel Sliding Way Covers
100 HP Table Drive
NOTE:
Excellent Condition, Inspect Under Power in Turbine Mfg Facility
