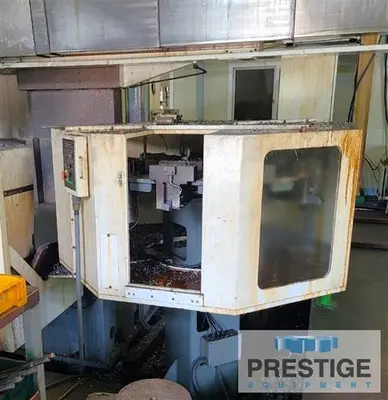

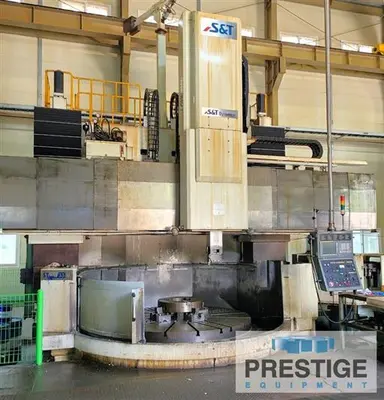

USED 2012 S & T DYNAMICS ST-25/35V

CAPACITY:
Table Diameter: 98.43"
Maximum Swing: 137.8"
Height Under Rail: 80.7"
X-Axis Travel of Ram: 114.17"
Z-Axis Ram Stroke: 47.24"
Ram Cross Section, Square: 9.44" x 9.44"
Table Speeds, Max: 130 RPM
Table Table Capacity: 25 TON
Table Motor: 60 HP / 73 HP
Machine Footprint: 437" x 347"
Machine Height: 315"
Machine Weight, Approx.: 165,346 lbs

Equipped With:

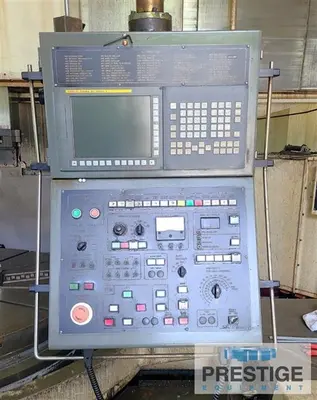

Fanuc 31i-A CNC Control
12-Position Automatic Tool Changer

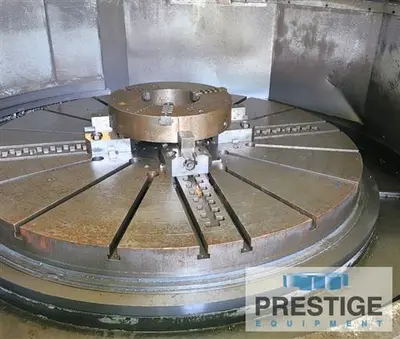

98.43" T-Slotted Table w/ 4-Top Jaws
Through Spindle & Flood Coolant
Fanuc Servo Motors & Drives on All Axis
Chip Conveyor
60/73 HP Fanuc AC Digital Spindle Drive Motor

Features:
Fanuc 31i-A CNC Control
12-Station Automatic Tool Changer
Through Spindle & Flood Coolant
Chip Conveyor
