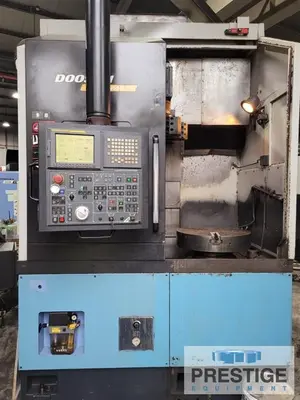

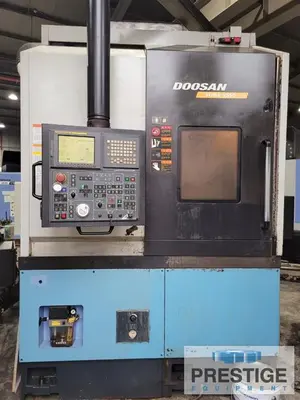

USED 2007 DOOSAN V550
Overview
Specifications
| Table Dia | 28.7" | 728.98 mm |
|---|---|---|
| Swing | 28.7" | 728.98 mm |
| Work Ht-U/R | 29.5" | 749.3 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 2,000 RPM | 2,000 RPM |
CAPACITY:
Max. Turning Diameter: 28.7"
Max. Turning Height: 29.5"
Spindle Speed Ranges (1): 20-2,000 RPM
Spindle Motor: 50 HP
X-Axis Travel (Ram): 15.4"
Z-Axis Travel (Rail): 31"
X-Axis Guideway Span: 15.2"
Z-Axis Guideway Span: 24.8"
Rapid Traverse (X-Axis): 472 IPM
Rapid Traverse (Z-Axis): 630 IPM
Max. Feed Rate: 236 IPM
Number Of Tools: 10
Turning Tool Shank Size: 1.25" Square
Boring Bar Dia.: 2.5"
Tool Selection: Bi-Directional
Coolant Pump Pressure: 65 PSI
Machine Weight: 19,850 Lbs
Machine Dimensions (L x W x H): 75" x 107" x 128"
Equipped With:

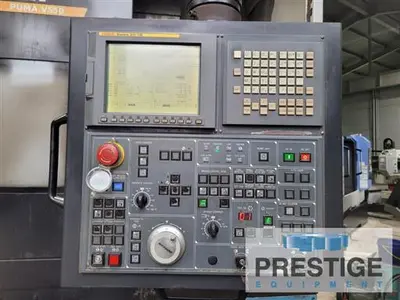

Fanuc 21iTB CNC Control

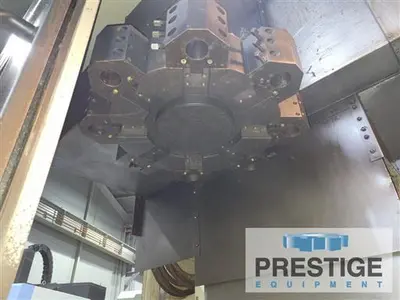

8 Position Turret
24" Hydraulic Chuck

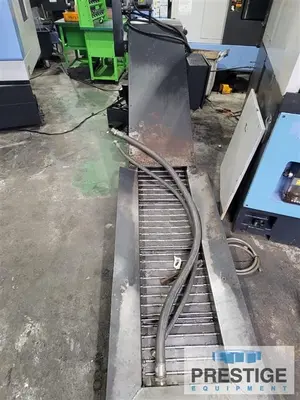

Chip Conveyor
HOURS:
Power on Hours: 45,6161
Cutting Hours: 12,034
Features:
Fanuc 21iTB CNC Control
24" Hydraulic Chuck
Chip Conveyor
