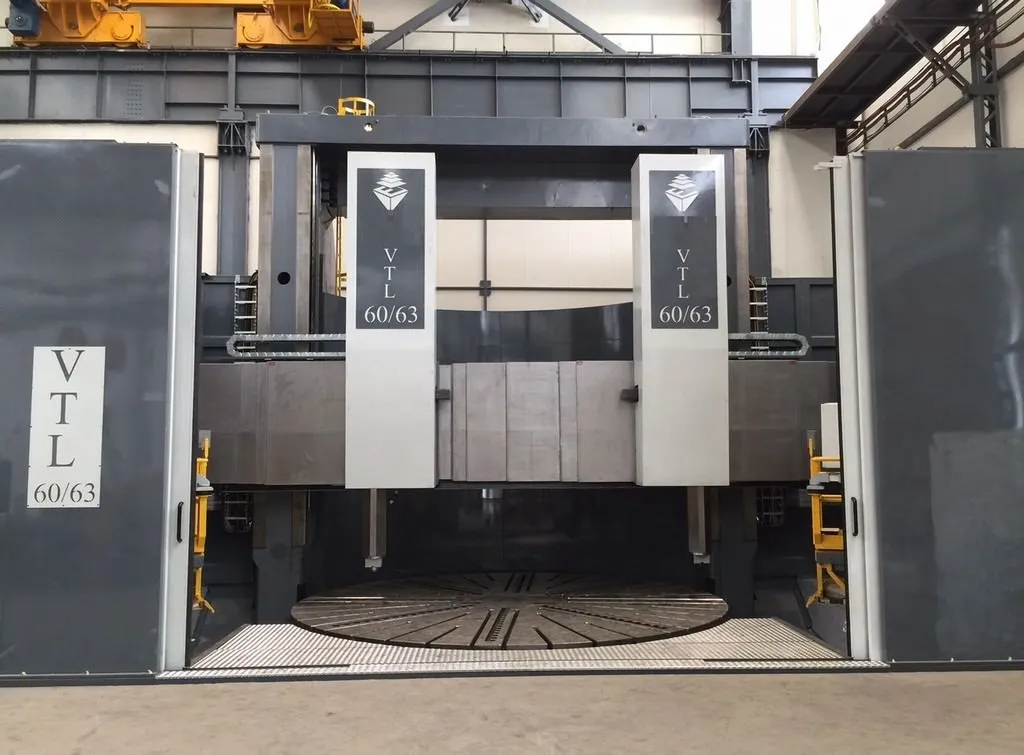

USED 2017 STANKO 60/63
Overview
Specifications
| Table Dia | 236.22" | 6,000 mm |
|---|---|---|
| Swing | 248.03" | 6,300 mm |
| Work Ht-U/R | 183" | 4,648.2 mm |
| Power | 170 hp | 126.8 kW |
| RPM | 30 RPM | 30 RPM |
SPECIFICATIONS:
Table Diameter: 236.22"
Maximum Swing: 248.03"
Maximum Height Under Ram: 183"
Cross Rail Vertical Travel: 138"
Vertical Stroke of Rams: 96"
Maximum Table Speed: 30 RPM
Ram Cross Section (Left & Right): 12.20" x 12.20"
Milling Motor: 40 HP
Milling Spindle Speeds: 0-4,000 RPM
Milling Spindle Taper: ISO 50
Table Weight Capacity: 396,000 Lbs
Main Motor: 170 HP
Equipped With:
Fanuc 31i CNC Control
Live Milling
2-Vertical Rams
16 Station Automatic Tool Changer (12 Milling Tools & 4 Turning Tools)
12 Station Automatic Tool Changer (Turning Tools)
Coolant Thru Milling Spindle
Full Enclosure
Chip Conveyor
Heidenhain Scales
NOTE:
Inspect Under Power
Features:
Rebuilt & CNC Retrofit: 2017
Fanuc 31i CNC Control
198 Ton Table Capacity
Live Milling
