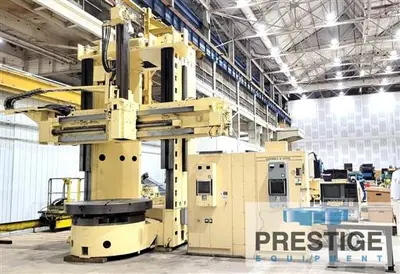

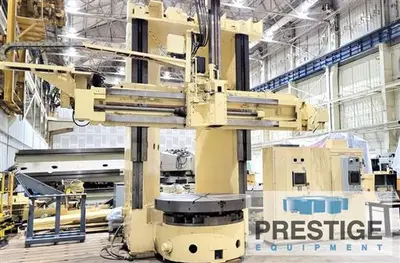

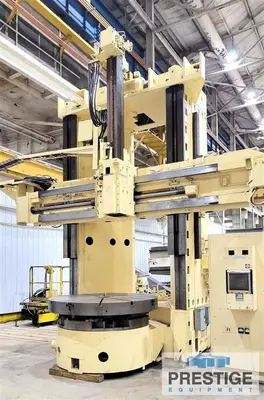

USED 1998 GIDDINGS & LEWIS SERIES 514

Serial Number: 514-0046-98

SPECIFICATIONS:

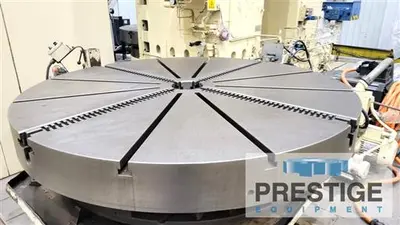

Table Diameter: 72"
Maximum Turning Diameter: 84"
Maximum Height Under Cross Rail: 96"
Ram Stroke, Z-Axis: 62"
Vertical Travel of Cross Rail: 54"
Ram Travel, Left of Center: 54.5"
Ram Travel, Right of Center: 48.5"
Ram Cross Section: 7.875"
Table Speeds, Inf. Variable: 2 Ranges
Table Speeds, High Range: 9 to 200 RPM
Table Speeds, Low Range: 2-50 RPM
Rapid Traverse, Rail Head X & Z Axis: 400 IPM
Feed Rates, Variable X & Z Axes: .01 to 150 IPM
Rail Elevating Rate: 30 IPM

Equipped With:

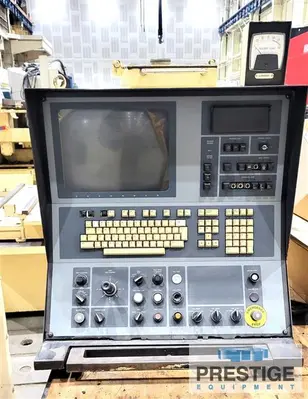

Giddings & Lewis 8000 CNC Control
12-Station Automatic Tool Changer
72" 4-Jaw Independent Manual Chuck

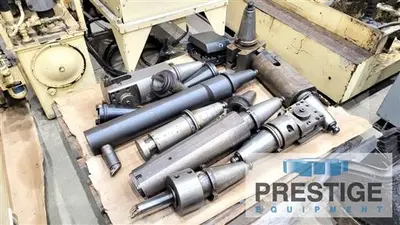

Power Draw Bar Ram w/#60 ANSI B5.50 Taper
Elevating Cross Rail
Extended Column Height
Flood Coolant System
Adjustable Cross Rail With Power Elevation and Clamping
Hardened Ways on Cross Rail
Independent AC Electric Servo Feed Drives
3" Diameter Ball Screws
Inductosyn Scale Feedback
Programmable Rail Height Adjustment
Automatic Rail Leveling
Numeriprobe In Process Gauging
Numeridapt Adaptive Control
Tool Tip Probing
Chip Conveyor with Elevator
75 HP Main Motor

NOTE:
Inspect In Our Philadelphia PA Warehouse
Includes Disassembly and loading to buyer's Trucks

Also Available:

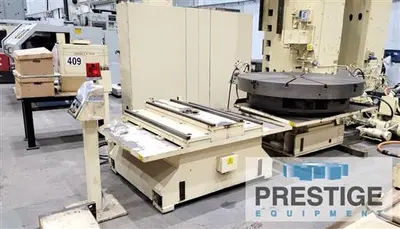

2-Pallet Shuttle System w/ additional 72" 4-Jaw Chuck

Features:
High Column Option 96" Under Cross Rail
Ram W/ 12 Station Automatic Tool Changer
72" 4-Jaw Independent Manual Chuck
G & L 8000 CNC Control
