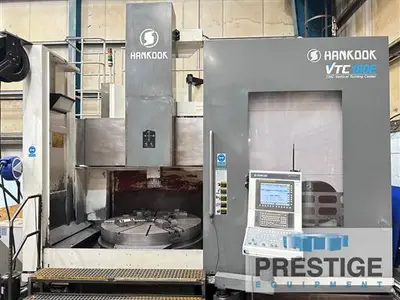

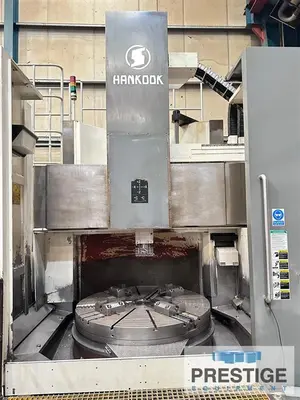

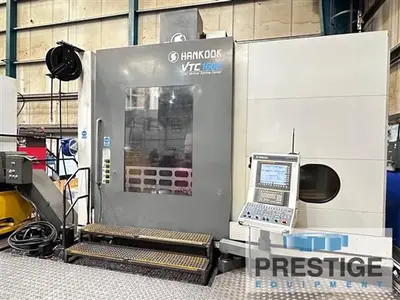

USED 2011 HANKOOK VTC 160E
Overview
Specifications
| Table Dia | 62.99" | 1,599.9 mm |
|---|---|---|
| Swing | 78.74" | 2,000 mm |
| Work Ht-U/R | 55.11" | 1,399.8 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 280 RPM | 280 RPM |
SPECIFICATIONS:
Table Diameter: 62.99"
Maximum Swing: 78.74"
Maximum Turning Diameter: 78.74"
Maximum Turning Height: 55.11"
Vertical Stroke of Ram Head............ 35.43": 35.43"
X-Axis Horizontal Ram Travel: 75"
Z-Axis Vertical Ram Travel: 35.43"
Vertical Travel of Cross Rail: 27.8"
Live Spindle Milling Speeds: 3000 RPM
Live Spindle Milling Motor: 25 HP
Spindle Taper: BT #50
Size of Ram: 8.66" x 8.66"
Table Speeds: .7-280 RPM
Number of Table Speeds: 2
C-Axis, Table Indexing: .000 degrees
Table Weight Capacity: 22,100 Lbs
Floor Space: 208" x 178"
Overall Height: 204"
Approximate Machine Weight: 74,900 Lbs
Equipped With:

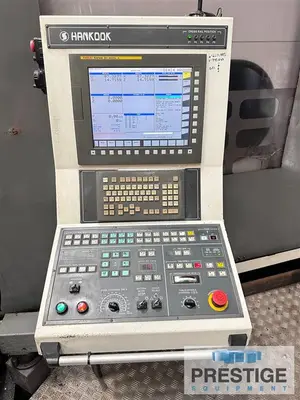

Fanuc System 31i-A with 10.4" Color LCD Display
Fanuc Digital AC Table and Servo Drives

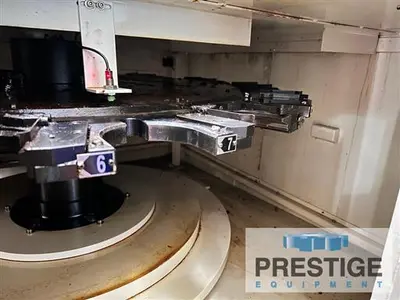

24-Station Automatic Tool Changer

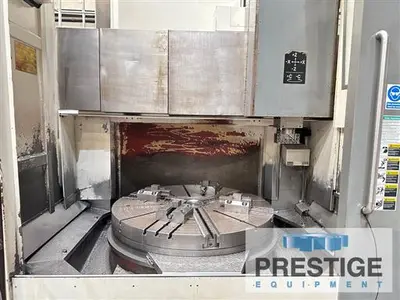

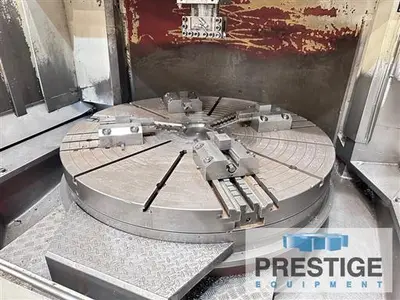

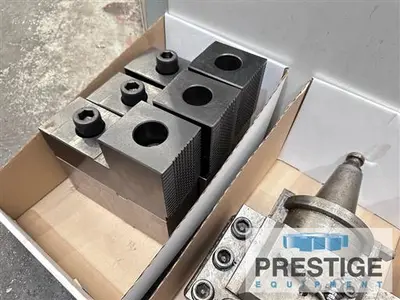

63" 3-Jaw Hydraulic & 4-Jaw Manual Combination Chuck
C-Axis for Milling & Drilling Operations

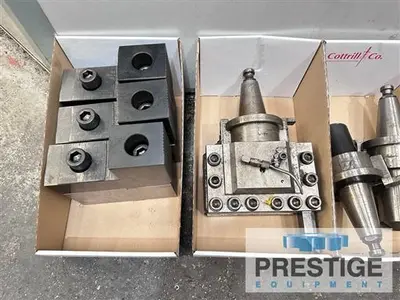

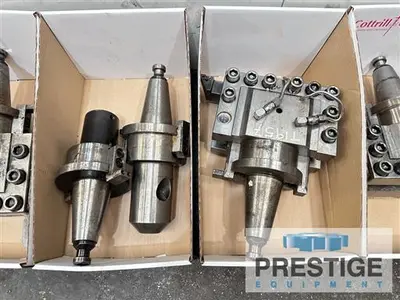

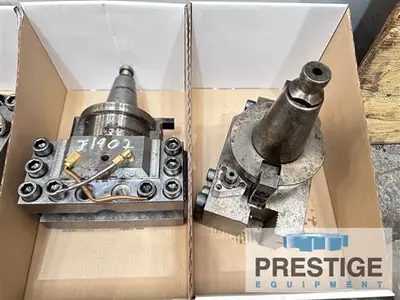

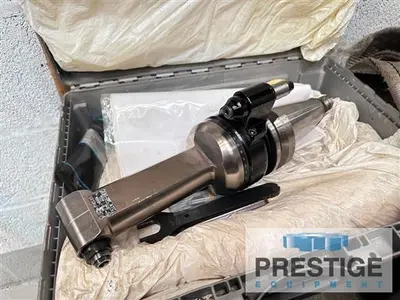

Miscellaneous Turning and Milling Tools
Chip Conveyor
60 HP AC Main Table Drive Motor
Glass Scale Feedback on All Axes
Through Spindle Coolant
Features:
Fanuc 31iA CNC Control

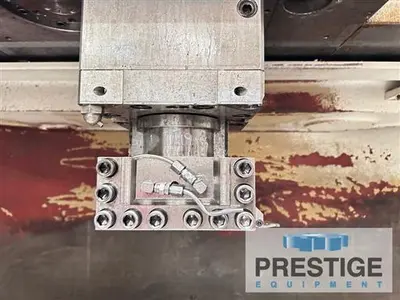

Ram w/24 Station ATC
Thru-Spindle Coolant
Flood Coolant
Tool Eye
C-Axis for Milling & Drilling Operations
Combination 3-Jaw Hydraulic and 4-Jaw Manual Chuck
