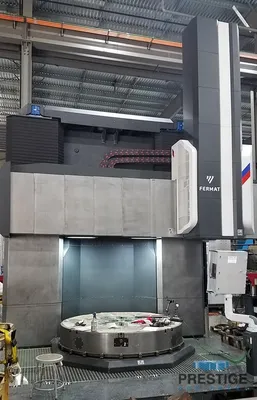

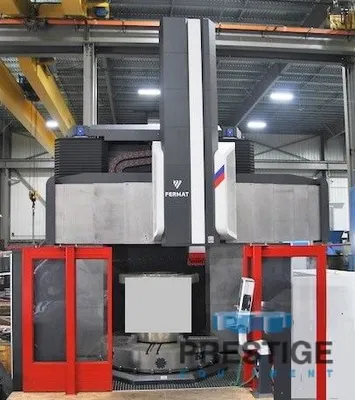

USED 2018 FERMAT FTL V2600
Overview
Specifications
| Table Dia | 90.55" | 2,300 mm |
|---|---|---|
| Swing | 102.36" | 2,599.9 mm |
| Work Ht-U/R | 78.74" | 2,000 mm |
| Power | 67 hp | 50 kW |
| RPM | 4,000 RPM | 4,000 RPM |
CAPACITY:
Table Diameter: 90.55"
Maximum Swing Diameter: 102.36"
Maximum Turning Height: 78.74"
Vertical Ram Stroke: 47.24
Ram Section: 12.59" x 12.59"
Cross Rail Stroke: 47.24"
Maximum Table Capacity: 55,000 lbs
Table Indexing: .001 Degrees
Table Speeds, Max: 300 RPM
Milling Spindle Speeds: 4,000 RPM
Milling Spindle Motor: 67 HP
Milling Spindle Taper: CAT 50
Machine Weight: 132,000 lbs
Equipped With:

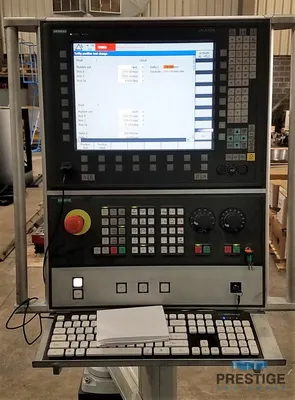

Siemens 840D sl. CNC Control
C-Axis Table

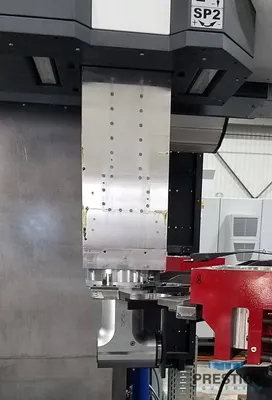

Ram with Live Milling Spindle
Through Spindle Coolant

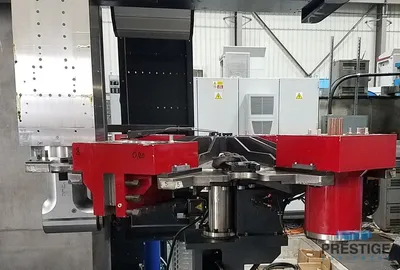

10-Station Automatic Attachment Changer
CNC Swivel Head
CNC Right Angle Head
Features:
Siemens 840D sl. CNC Control
C-Axis Table
Ram with Live Milling Spindle
Through Spindle Coolant
10-Station Automatic Attachment Changer
CNC Swivel Head
CNC Right Angle Head
