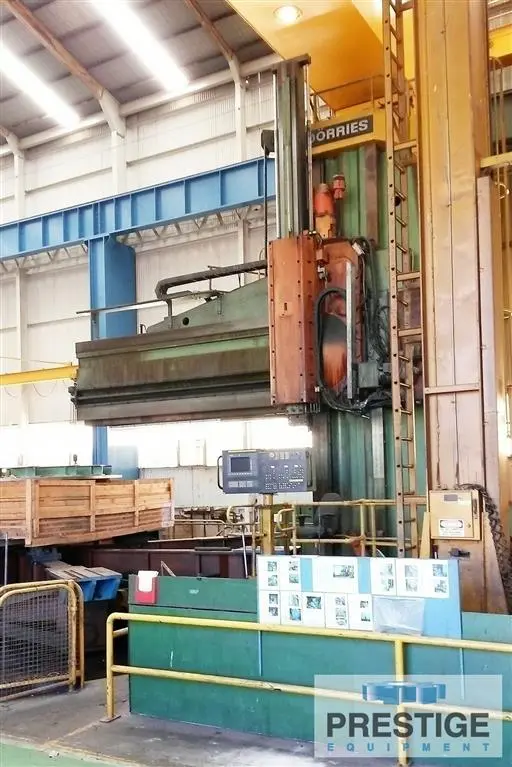

USED 1996 DORRIES SDE600
Overview
Specifications
| Table Dia | 248.03" | 6,300 mm |
|---|---|---|
| Swing | 566.9" | 14,399 mm |
| Work Ht-U/R | 192.91" | 4,899.9 mm |
| Power | 150 hp | 111.9 kW |
| RPM | 25 RPM | 25 RPM |
Serial Number: B186 / 50538
SPECIFICATIONS:
Table Diameter: 248.03"
Maximum Swing: 566.90"
Maximum Height Under Rail: 204.70"
Maximum Turning height: 192.91"
Ram Vertical Travel: 98.42"
Column Travel: 165.35"
Main Motor: 150 HP
Table Speeds, 3-Ranges: 0-25 RPM
Table Weight Capacity: 250 Tons
Milling Spindle Motor: 29.91 HP (22 KW)
Milling Spindle Speeds: 50-400 RPM
Approximate Floor Space: 756" x 594"
Approximate Overall Height: 315"
Equipped With:
Siemens 840C CNC Control, New 1996
248" T-Slotted Table w/ 4-Top Jaws

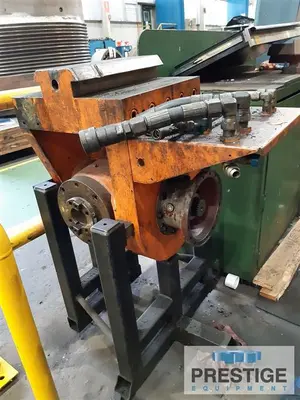

Ram W/ Milling Attachment
ROD800 Encoder & Brake for Table Indexing For Drilling & Tapping Operations
Features:
Retrofit With New CNC Controls In 1996
Siemens 840C CNC Control
Openside Design With Sliding Column
Ram With Milling Attachment
ROD800 Encoder & Brake for Table Indexing For Drilling & Tapping Operations
