| Table Dia | 15" | 381 mm |
| Swing | 32.67" | 829.82 mm |
| Work Ht-U/R | 29.52" | 749.81 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 1,940 RPM | 1,940 RPM |
CAPACITY:
Maximum Turning Diameter: 32.67"
Maximum Turning Length: 29.52"
Maximum Table Load: 1,918 Lbs.
Spindle Speed Ranges (1): 1,940 RPM
Spindle Motor: 50 HP
X-Axis Travel: 19.5"
Z-Axis Travel: 31"
Rapid Traverse (X-Axis): 787 IPM
Rapid Traverse (Z-Axis): 787 IPM
Equipped With:

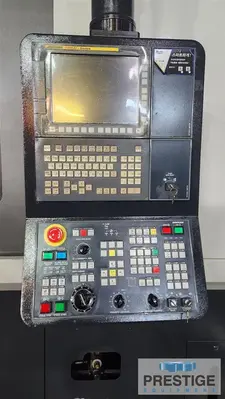

Fanuc i CNC Control
15" Chuck
12 Position Turret
Chip Conveyor
Features:
Fanuc i CNC Control
15" Chuck
12 Position Turret
Chip Conveyor
