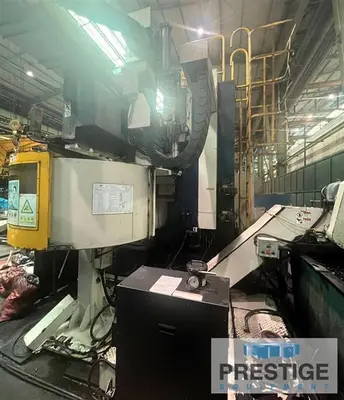

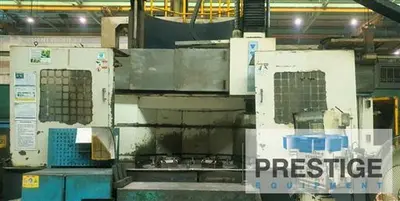

USED 2008 HNK VTC-16/20

CAPACITY:
Table Diameter: 62.99"
Maximum Swing: 78.74"
Maximum Turning Height: 62.99"
Table Speeds: 1-250 RPM
Table Load Capacity: 22,046 LBS
Vertical Ram Travel, Z-Axis: 35.4"
Ram Cross Section: 9.4" x 9.4"
Milling Spindle Speed: 1,500 RPM
Table Motor: 60 HP

Equipped With:
Fanuc 31iA CNC Control
12-Station Automatic Tool Changer
Milling Spindle
Linear Scales on X/Z Axes

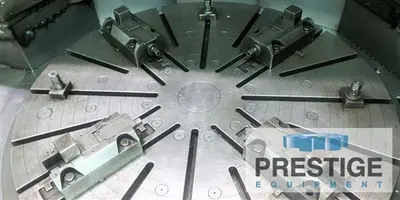

62.99" Face Plate Chuck W/4-Jaws
Coolant System
Full Chip and Splash Enclosure
Chip Conveyor
60 HP Main Motor

Features:
Fanuc 31iA CNC Control
12-Station Automatic Tool Changer
Milling Spindle
Linear Scales on X/Z Axes
