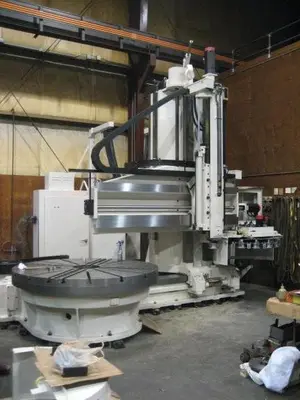

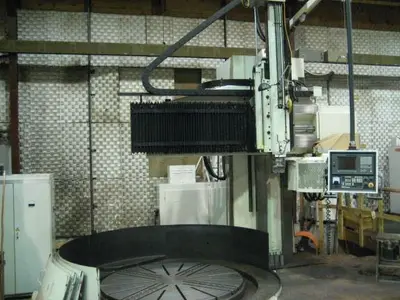

USED 2026 KOBE LS 20/40
Overview
Specifications
| Table Dia | 78.7" | 1,999 mm |
|---|---|---|
| Swing | 157.5" | 4,000.5 mm |
| Work Ht-U/R | 63" | 1,600.2 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 120 RPM | 120 RPM |
CAPACITY:
Table Diameter: 78.70"
Maximum Swing: 157.50"
Maximum Height Under Tool: 63"
Vertical Travel Of Rail: 41.3"
Vertical Travel of Ram Head: 36"
Table Speeds (Inf. Variable): 1-120 RPM
Feeds: .001 to 40 IPM
Rapid Traverse: 0-250 IPM
Table Load Capacity: 46,000 LBS
Approx Machine Dimensions: 264"W x 205"D x 240"H
Approx Machine Weight: 65,000 lbs.
Equipped With:

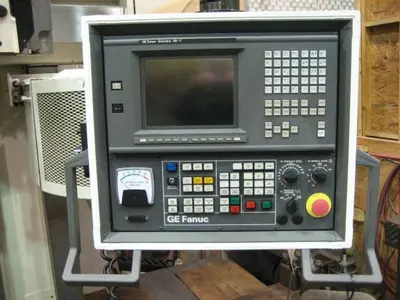

Fanuc 16i CNC Controls, Retrofit 2026
Infeeding Column Design for 157" Diameter Swing

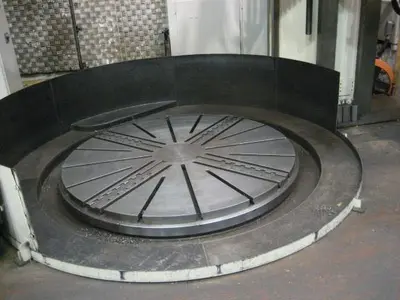

78.7" T-Slotted Table
Vertical Ram
50 HP Table Drive 220/3/60 Cycle
NOTES:
5-6 Month Delivery
Available Options:
Coolant System with Full Splash Enclosure
Automatic Tool Changer
Capto Quick Change Block
Features:
Fanuc 16i CNC Controls, Retrofit 2026
Infeeding Column Design for 157" Diameter Swing
78.7" T-Slotted Table
Vertical Ram
