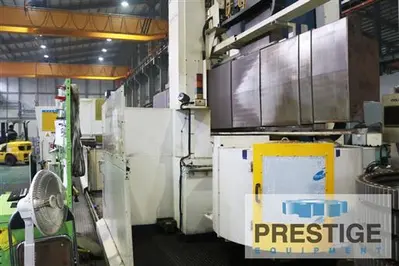

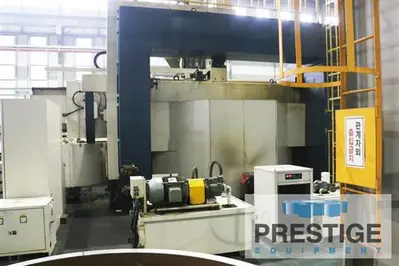

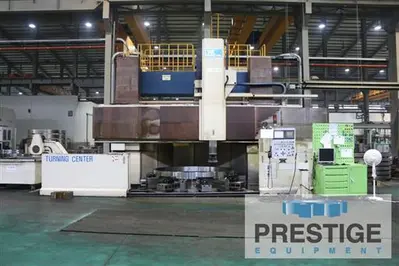

USED 2009 HNK NT-25/35

SPECIFICATIONS:
Table Diameter: 98.42"
Maximum Swing: 137.79"
Maximum Turning Height: 78.74"
Cross Rail Adjustment 4-Steps: 9.84" Each
Ram Cross Section: 9.45" x 9.45"
Table Speeds: to 120 RPM
Table Load Capacity: 26,820 Lbs
Vertical Ram Travel, Z-Axis: 47.24"
Rapid Feed Rate: 393.7 IPM
Cutting Feed Rate: 118.11 IPM
Main Motor, AC: 60 HP/ 75 HP

Equipped With:
Fanuc 18i-TB CNC Controls
78.74" Face Plate Chuck W/4-Jaws
12-Station Automatic Tool Changer
Heidenhain Linear Scales X & Z Axes
Coolant System with Chiller Unit
Chip Conveyor
Splash Guard
75 HP Main Motor

Features:
Fanuc 18i-TB CNC Control
12-Station Automatic Tool Changer
Heidenhain Linear Scales
