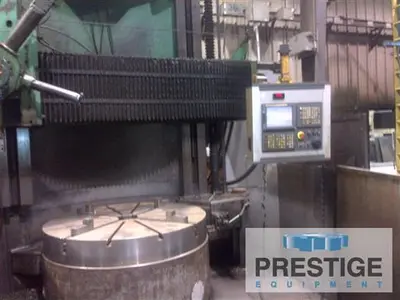

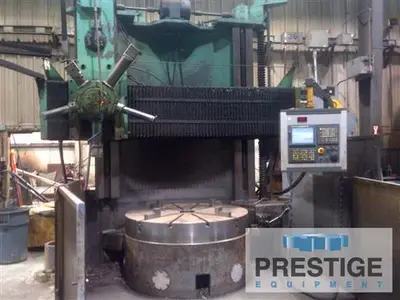

USED 1971 GIDDINGS & LEWIS MODEL 75

SPECIFICATIONS:
Table Diameter: 60"
Maximum Swing: 72"
Maximum Height Under Turret face....... 81": 81"
Rail Travel: 60"
Turret Stroke: 36"
Turret Travel, Right on Center: 46"
Turret Travel, Left of Center: 40"
Table Speeds, 2-Ranges: 3-272 RPM

Equipped With:
Fanuc 18i 4-Axis CNC Control (Retrofit)
60" Diameter 4-Jaw Chuck
5-Position Turret On Rail
Side Head (Not Operable)
Hardened Rail Ways
Ball Screws & Independent Drives
50 HP DC Table Drive
Chip Conveyor

Note:
Inspect Under Power In West Coast Plant!

Features:
Fanuc 18i 4-Axis CNC Control (Retrofit)
5-Position Power Indexing Turret
Side Head (Not Operable)
