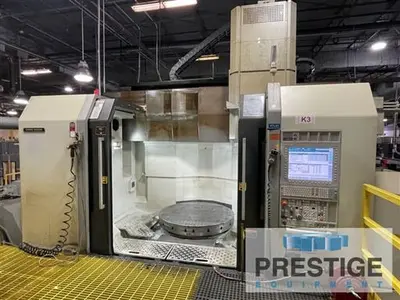

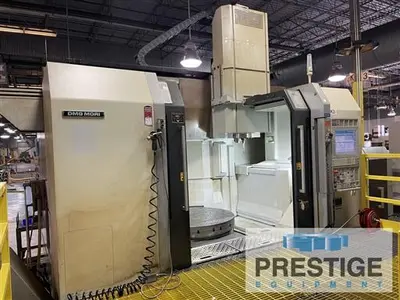

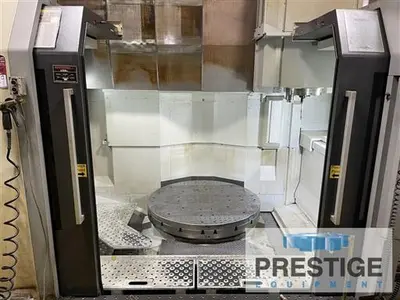

USED 2015 DMG MORI NVL 1350MC
Overview
Specifications
| Table Dia | 53.14" | 1,349.8 mm |
|---|---|---|
| Swing | 62.99" | 1,599.9 mm |
| Work Ht-U/R | 43.3" | 1,099.8 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 400 RPM | 400 RPM |
SPECIFICATIONS:

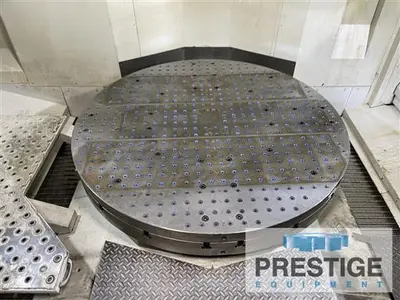

Table Diameter: 53.14"
Maximum Swing: 62.99"
Maximum Height Under the Rail: 51.2"
Maximum Part Height: 43.3"
X-Axis Travel: 80.7"
Z-Axis Travel: 31.5"
ZB Travel: 19.7"
Table Speed: 400 RPM
Main Motor: 50 HP
C-Axis Rotation: .001 Deg.
Table Weight Capacity: 17,600 Lbs

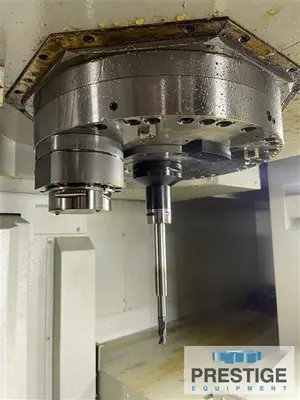

Milling Speeds: 3,000 RPM
Milling Spindle Taper: Capto C8
Milling Motor: 30 HP
Equipped With:

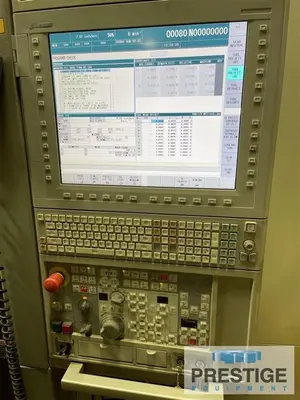

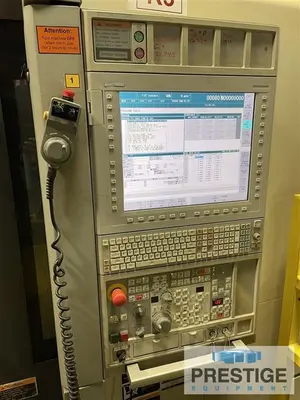

Fanuc 31iA CNC Control
MAPPS Camera System

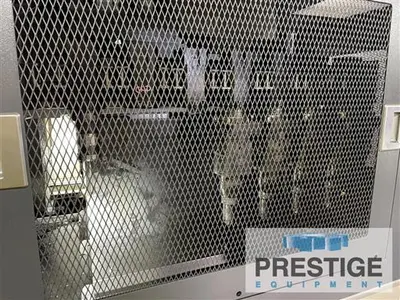

24-Station Automatic Tool Changer
C-Axis Table Rotation (0.001 Degree)
Live Milling/Drilling

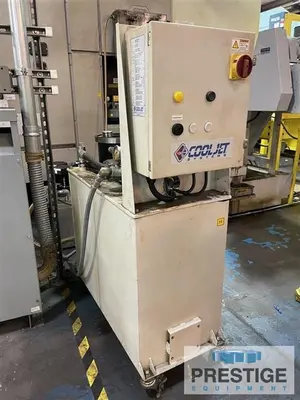

Cool Jet High Pressure Coolant System
Part Probing

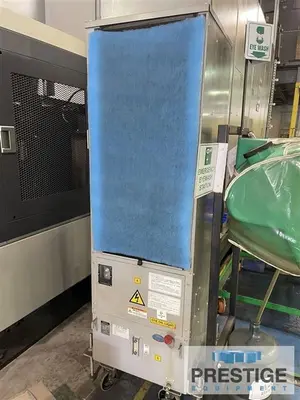

Mist Collector

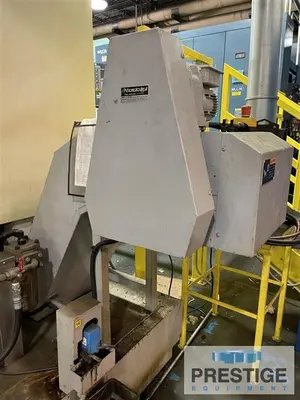

Chip Conveyor
NOTE:
Very Low Hours!
Less than 4,000 Cutting Hours!
Features:
Fanuc 31iA CNC Control
24-Station Automatic Tool Changer
C-Axis Table Rotation (0.001 Degree)
Live Milling/Drilling
