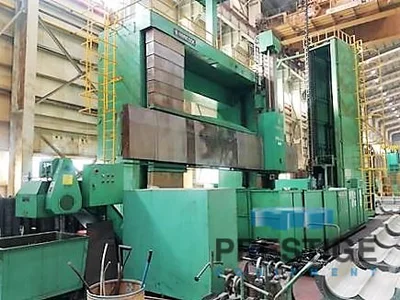

USED 2011 HANKOOK VTB-4555E
Overview
Specifications
| Table Dia | 177.16" | 4,499.9 mm |
|---|---|---|
| Swing | 216.53" | 5,499.9 mm |
| Work Ht-U/R | 157.48" | 4,000 mm |
| Power | 174.3 hp | 130 kW |
| RPM | 60 RPM | 60 RPM |
CAPACITY:
Table Diameter: 177.16"
Maximum Swing: 216.53"
Maximum Turning Height: 157.48"

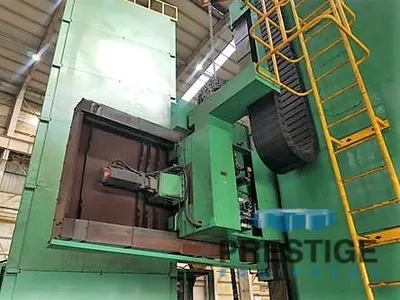

Ram Dimensions: 15.74" x 15.74"
Taper in Ram: BT-50
Table Speeds, 2-Range: 1 - 60 RPM
Table Weight Capacity: 110,000 Lbs
Z-Axis Travel, Ram Stroke: 78.74"
X-Axis Travel, Cross Travel: 111.81"
W-Axis Travel, Rail Vertical: 98.42"
Cutting Feed Rate, X/Z-Axes: Up to 236.22 IPM
Rapid Traverse Rate, X/Z-Axes: 236.22 IPM
Rapid Traverse Rate, W-Axis: 19.68 IPM
Table Motor: 174.33 HP
Approx. Machine Footprint: 551.18" x 355.90"
Approx. Machine Height: 433.07"
Approx. Machine Weight: 352,000 Lbs
Equipped With:

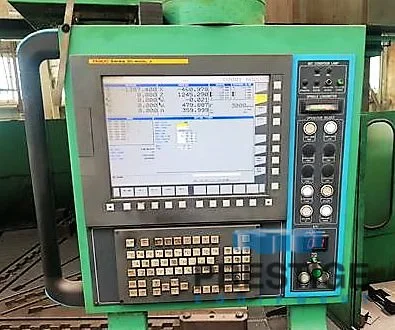

Fanuc 31i-A CNC Control

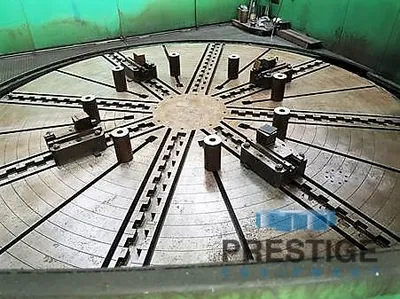

177.16" Independent Manual 4-Jaw Chuck

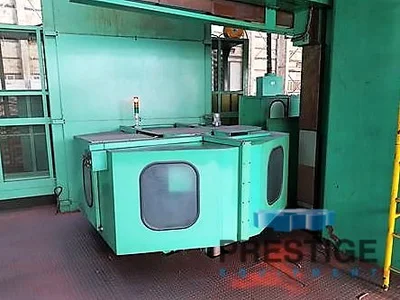

12 Station Automatic Tool Changer
Double Column Design
Coolant System
Power Elevating Rail
Steel Sliding Way Covers

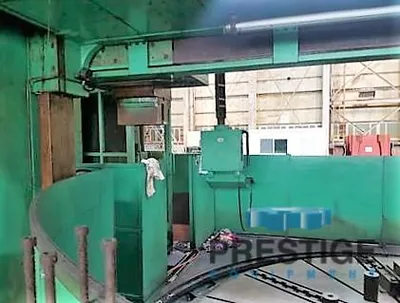

Splash Guard

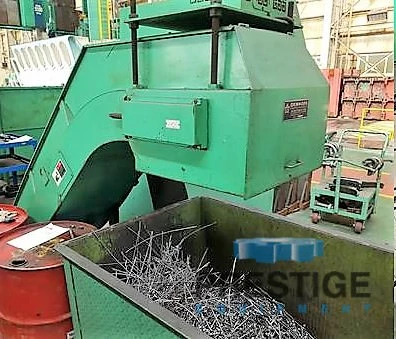

Chip Conveyor
Features:
Fanuc 31i-A CNC Control
177.16" Independent Manual 4-Jaw Chuck
12 Station Automatic Tool Changer
Double Column Design
Coolant System
Power Elevating Rail
