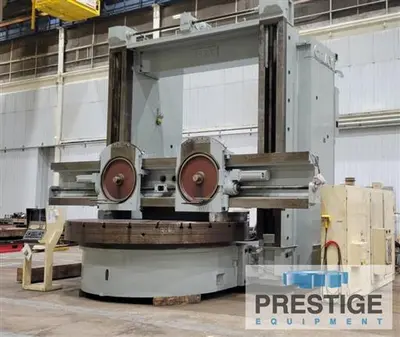

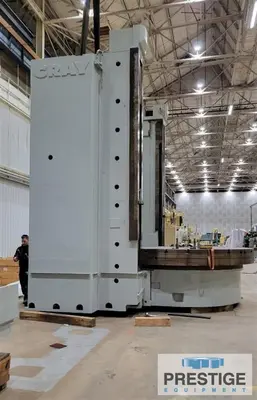

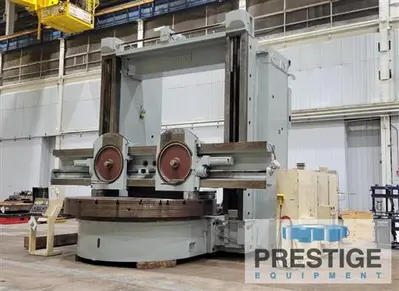

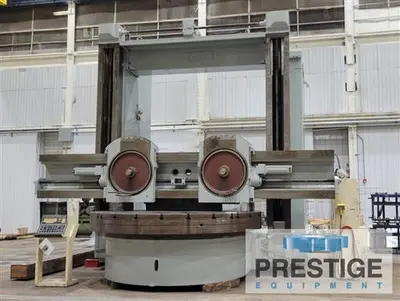

USED 1995 GRAY SERIES 300 HEAVY DUTY

CAPACITY:
Table Diameter: 144"
Maximum Swing: 151"
Maximum Height Under Cross Rail: 120"
Maximum Under Ram or Tool Block........ 112": 112"
Ram Stroke: 96"
Table Capacity: 100 Ton
Table Speeds, Infinitely Variable: .8-50 RPM
Table Speed Ranges: 2
Feeds, Infinitely Variable: .0005-2.0 IPR
Giddings & Lewis 8000 CNC Controls:
144" Dia. T-Slotted Table:
2-Vertical Vertical Rams:
Ram Travel Past Table Center:
Power Rail Elevation:
Hardened Wear Strips on rail:
75 HP Table Drive Motor:

NOTE:
Complete Retrofit By Giddings & Lewis in Late 1990's:

Location:
Located 10 Minutes from Philadelphia, PA International Airport:
Includes Disassembly and loading to Trucks in Our Warehouse.:
Packing for Overseas is additional Cost:

Features:

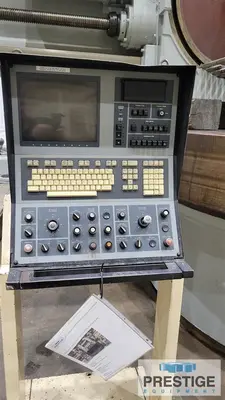

Giddings & Lewis 8000 CNC Controls
144" Dia. T-Slotted Table
2-Vertical Rams
100 Ton Table Capacity
