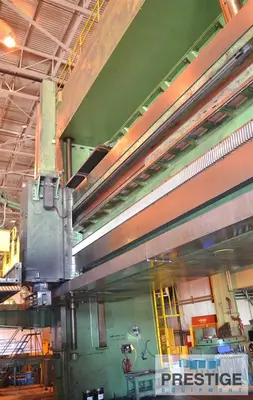

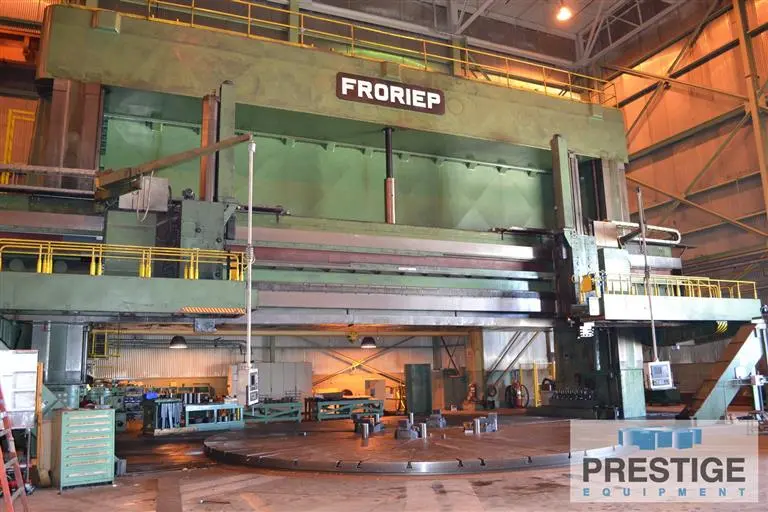

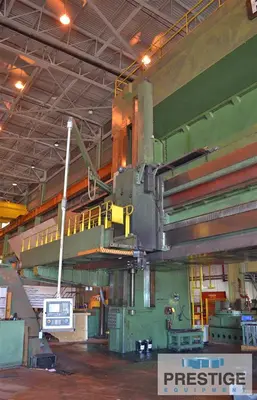

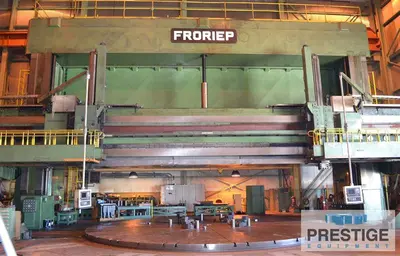

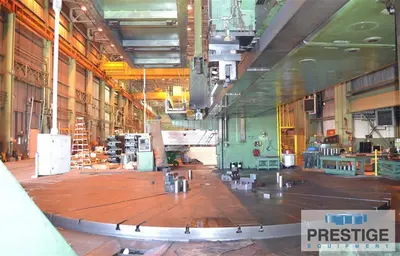

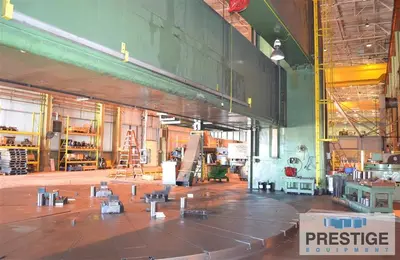

USED 1999 FRORIEP DOUBLE COLUMN 590" SWING
Overview
Specifications
| Table Dia | 393.37" | 9,991.6 mm |
|---|---|---|
| Swing | 590.55" | 15,000 mm |
| Work Ht-U/R | 196.85" | 5,000 mm |
| Power | 250 hp | 186.4 kW |
| RPM | 13 RPM | 13 RPM |
SPECIFICATIONS:
Table Diameter: 393.37"
Turning Diameter with Vertical Rams: 590.55"
Maximum Turning Height: 196.85"
Ram Vertical Travel: 78.74"
Ram Swivel: +/- 30/15 Deg
Maximum Cutting Force Right Rail Hd: 27,558 Lbs.
Table Load Capacity: 440,925 Lbs.
Table Speed Ranges, Inf.Variable: 4
Table Speeds: 0.13 to 13 RPM
Rapid Traverse, X & Z Axis: 64.17" IPM
Creep Feed Motion, X & Z Axes: 0.118 IPM
Cross Rail Elevation Motor: 40.23 HP
Number of Feeds, Vertical & Horiz.: 30
Vertical Ram Feeds: .00196-1.574 IPR
Horizontal Ram Feeds: .00196-1.574 IPR
Cross Rail Adjustment Motor: 86 HP
Rapid Traverse Motors: 15.5 HP
Main Motor: 250 HP
Equipped With:

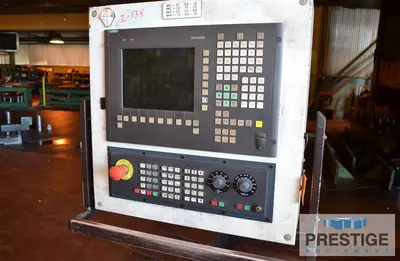

Siemens 840D CNC Control New 1999
Dual Pendant Operated Controls
2-Vertical CNC Controlled Rams

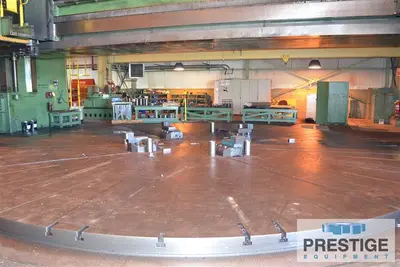

393.37" Diameter T-Slotted Table

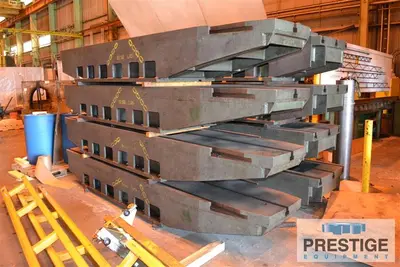

4-Heavy Duty Face Plate Type Jaws
Hydrostatic Bearing System For Table
Dual Operators Platforms

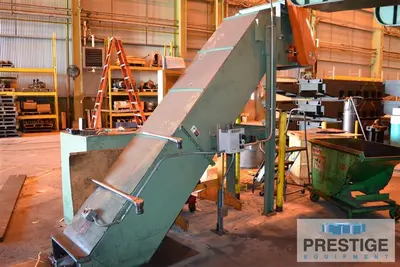

Dual Jorgansen Chip Conveyors
250 HP Table Motor
Rebuilt and Retrofit:
Rebuilt & CNC Retrofit in 1999. New Ball Screws, Refitted Column, Saddle and
Rams, New Drives, New Clutch System, Electrics
Features:
Siemens 840D CNC Control
2-Vertical Ram Heads
Rebuilt & CNC Retrofit In 1999
