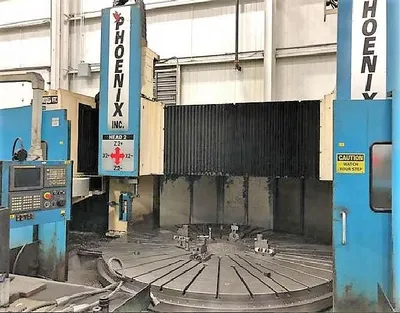

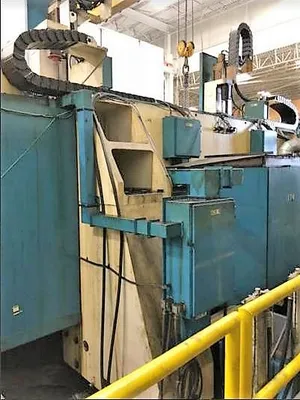

USED 2009 PHOENIX VTC 144/160
Overview
Specifications
| Table Dia | 144" | 3,657.6 mm |
|---|---|---|
| Swing | 160" | 4,064 mm |
| Work Ht-U/R | 42" | 1,066.8 mm |
| Power | 130 hp | 96.9 kW |
| RPM | 100 RPM | 100 RPM |
CAPACITY:
Table Diameter: 144"
Maximum Swing: 160"
Height Under Rail: 42"
X-Axis Travel of Ram Past Centerline: 24"
Z-Axis Vertical Ram Travel: 36"
Ram Cross Section: 12" x 12"
Table Speeds: 0-100 RPM
Table Speed Gear Ranges: 2
Table Weight Capacity: 35 Ton
Z-Axis Thrust: 12,000 Lbs
X-Axis Thrust: 12,000 Lbs
Feed Rates: 150 IPM
Rapid Rates: 300 IPM
Table Power: 130 HP
Equipped With:
Fanuc 18i-T 4-Axis CNC Control

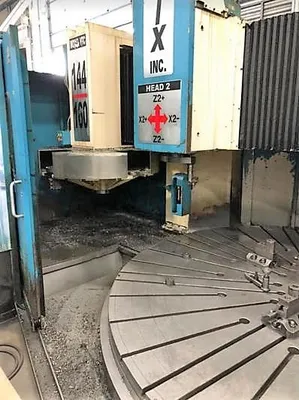

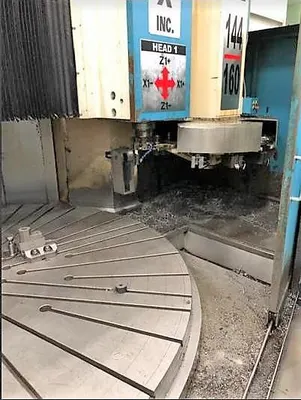

(2) Vertical Ram Heads

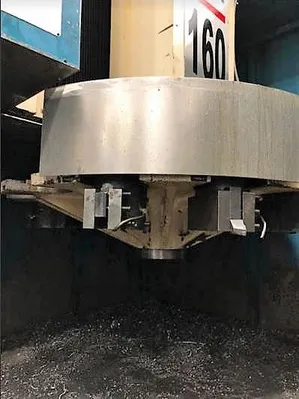

(2) 12 Station Automatic Tool Changers
Part and Tool Probe
Hardened & Ground Box Ways on Cross Rail
Fixed Rail Design
Forged Rams
Heavy Duty Casted Base, Columns & Cross Rail
Timken Cross Roller Bearing
Hardened & Ground Table Gear 103" Diameter
3" Diameter Hardened & Ground Ball Screws
GE/Fanuc AC Servo Drives
Heidenhain Linear Feedback
Dual Chip Conveyors
Features:
Fanuc 18i-T 4-Axis CNC Control
(2) Vertical Ram Heads
(2) 12 Station Automatic Tool Changers
Part and Tool Probe
