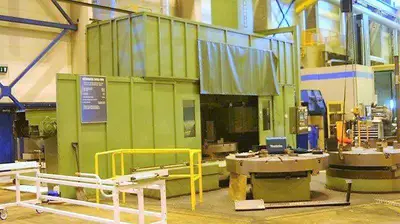

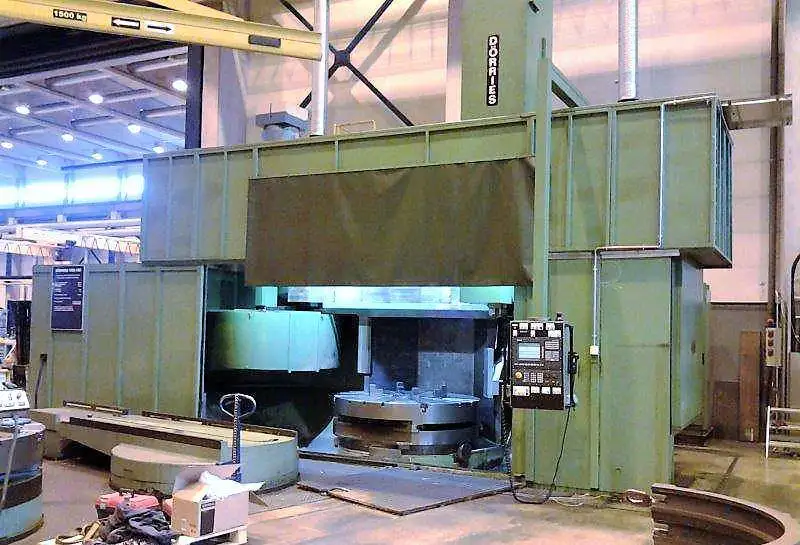

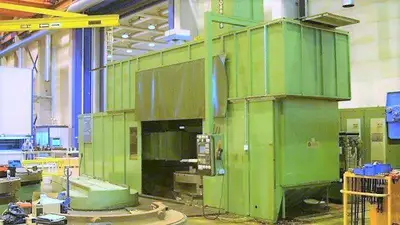

USED 2005 DORRIES VCE 180 MILLING

CAPACITY:
Pallet Diameter: 80.3"
Maximum Swing: 86.6"
Maximum Turning Height: 70.86"
Horizontal Travel of Ram Head: 51.96
Vertical Travel of Ram Head: 59.05"
Table Speeds: 2.5-280 RPM
Table Weight Capacity: 26,400 Lbs.
Feeds: .004 - 236 IPM
Main Motor: 100 HP
Spindle Motor: 20 HP
Spindle Speeds: 45 - 1350 RPM
Floor Space: 393" x 381"
Height: 267"
Approximate Weight: 94,772 Lbs.

Equipped With:

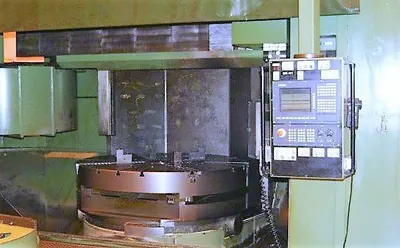

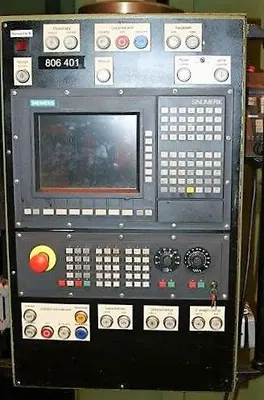

Siemens Sinumerik 840C CNC Control (2015 Retrofit)

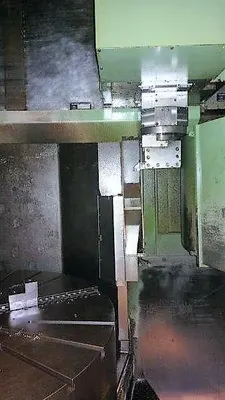

Vertical Ram with Live Spindle

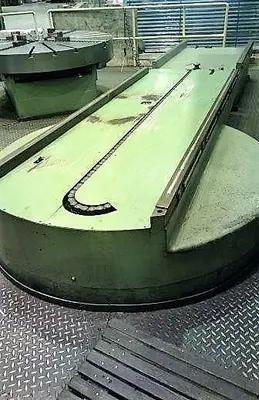

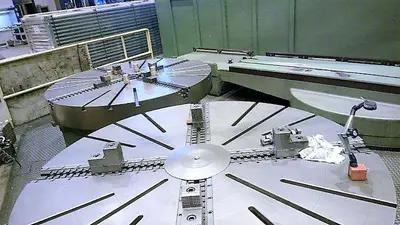

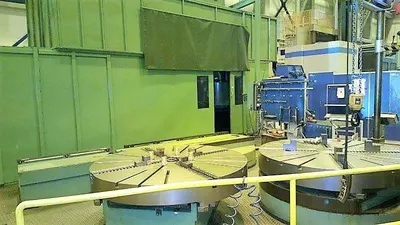

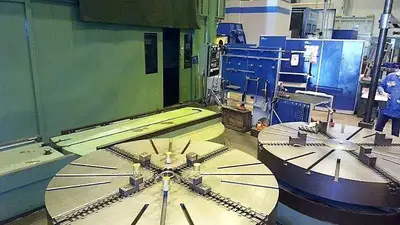

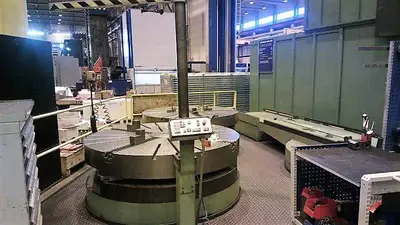

Pallet Changer (3-Pallets)
16-Station Automatic Tool Changer

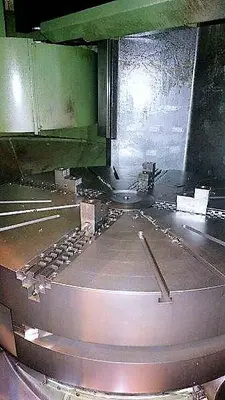

C-Axis Table

NOTE:
View Video On Our Website www.prestigeequipment.com

Features:
Siemenst 840C CNC Control
16-Station ATC
Live Spindle
C-Axis Table
