| Spindle Size | 6.1" | 154.94 mm |
| X-Horiz Tvl of Table | 98.42" | 2,499.9 mm |
| Y-Vert Tvl of Head | 82.7" | 2,100.6 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 3,500 RPM | 3,500 RPM |
| Table-W | 62.99" | 1,599.9 mm |
| Table-L | 70.86" | 1,799.8 mm |
| Spindle Tvl. | 49.2" | 1,249.7 mm |
SPECIFICATIONS:
Spindle Diameter: 6.1"
Taper In Spindle: Cat 50
Vertical Head Travel, Y-Axis: 82.7"
Vertical Head Travel, Above Table: 78.7"
Table Cross Travel, X-Axis: 98.42"
Saddle Travel, W-Axis: 59.05"
Spindle Travel, Z-Axis: 49.2"

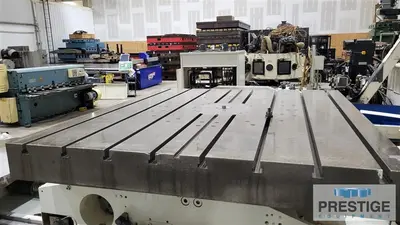

Table Size, Built-In Rotary: 62.99" x 70.86"
Table Rotation, B-Axis: 360,000 Positions
Table Rotation: 6 RPM
Table Load Capacity: 33,100 Lbs
Spindle Speeds: 1-3500 RPM
Speed Ranges: 4
Spindle Motor: 50 HP / 74 HP
Rapid Traverse: 985 IPM
Floor Space W x D: 240" x 300"
Overall Height: 197"
Approximate Weight: 70,000 Lbs
Equipped With:

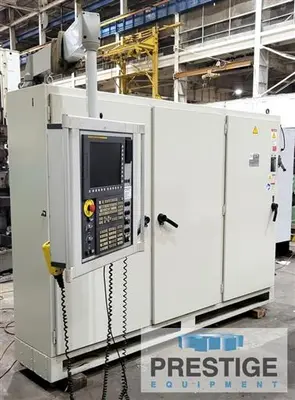

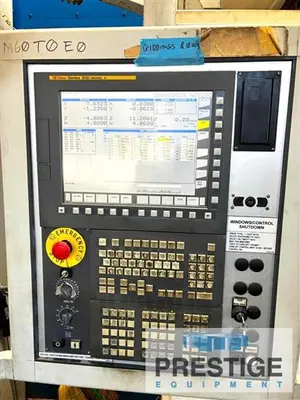

Fanuc 310i CNC Control
Software for CH Facing Heads & Programmable Boring Bars
60 Station Automatic Tool Changer
Coolant-Thru Spindle
Remote Pendant
Manual Cam Lock Latch Coupler For Attachments
Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Chip Conveyor
50 HP / 74 HP Spindle Motor
Features:
Fanuc 310i CNC Control
Built-In B-Axis Rotary Table
Thru-Spindle Coolant
Chip Conveyor
