| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Table | 157.5" | 4,000.5 mm |
| Y-Vert Tvl of Head | 92" | 2,336.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Table-W | 59" | 1,498.6 mm |
| Table-L | 157.5" | 4,000.5 mm |
| Spindle Tvl. | 27.6" | 701.04 mm |
SPECIFICATIONS:
Spindle Diameter: 5.12"
Milling Spindle Diameter: 8.86"
Spindle Taper: #50
Vertical Travel, Y-Axis: 92"
Table Cross Travel, X-Axis: 157.5"
Spindle Travel, Z-Axis: 27.6"
Column Travel, W-Axis: 59"
Table Size: 157.5" x 59"
Table Capacity: 44,000 lbs
Spindle Speeds: 0-2000 RPM
Floor Space: 449" x 205"
Machine Height: 192"
Approx. Machine Weight: 65,000 lbs.
Equipped With:

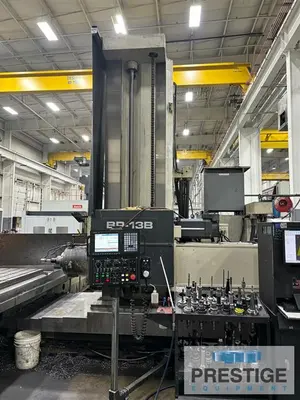

Mitsubishi 700 Series CNC Control (Retrofit 2016)
Ballscrews & Independant Servo Drives
Hardened & Ground Ways Box Ways
30/25 HP Spindle Drive
Note:
New Turkite on X-Axis in 2024
Features:
Mitsubishi 700 Series CNC Control (Retrofit 2016)

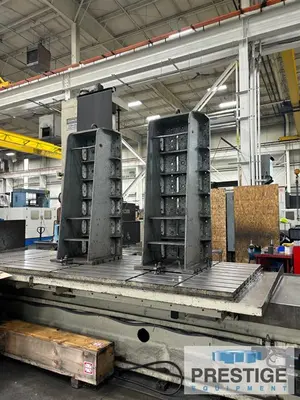

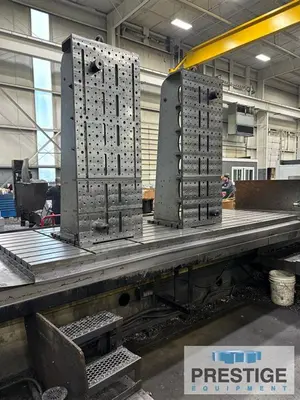

Large 59" x 157" Plain Table
Glass Scales
New Ball Screws on X & Y Axis
In-feeding Column
