| Spindle Size | 5" | 127 mm |
| X-Horiz Tvl of Table | 120" | 3,048 mm |
| Y-Vert Tvl of Head | 84" | 2,133.6 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 60" | 1,524 mm |
| Table-L | 120" | 3,048 mm |
| Spindle Tvl. | 36" | 914.4 mm |
SPECIFICATIONS:
Spindle Diameter: 5"
Taper In Spindle: #50 ANSI
Vertical Travel Of Headstock: 84"
Cross Travel Of Table: 120"
Saddle Travel (In & Out): 62"
Spindle Travel (In & Out): 36"
Spindle Speeds (Inf Variable): 25-1120 RPM

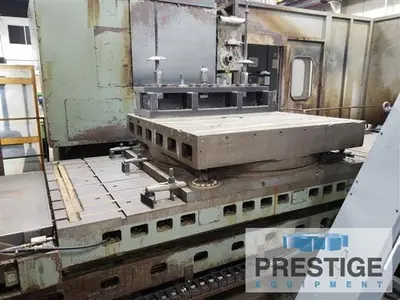

Table Size: 120" x 60"
Equipped With:

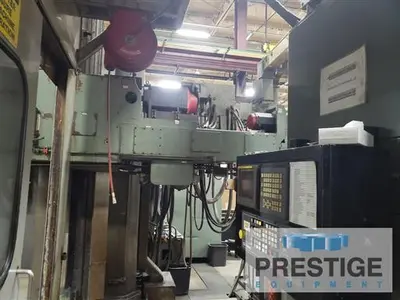

Fanuc 18i-M CNC Controls (Retrofit in 2009)

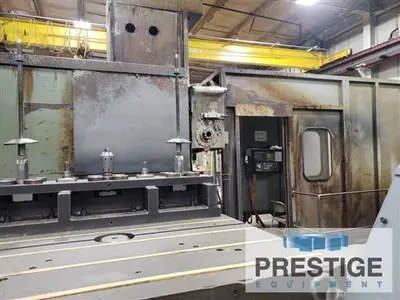

40-Station Automatic Tool Changer
Heidenhain Scales
Power Draw Bar
Double Saddle Supports
Flood & Through Spindle Coolant
30 HP Spindle Drive Motor
Note:
60" X 60" G&L Airlift Rotary Table not included.
Available at Additional Cost
Features:
Fanuc 18i-M CNC Controls (Retrofit in 2009)
40-Station Automatic Tool Changer
Heidenhain Scales
Flood & Through Spindle Coolant
