| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Table | 98.4" | 2,499.4 mm |
| Y-Vert Tvl of Head | 82.7" | 2,100.6 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Table-W | 49.25" | 1,250.9 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 31.5" | 800.1 mm |
SPECIFICATION:
Spindle Diameter: 5.12"
X-Axis Travel: 98.4"
Y-Axis Travel: 82.7"
Z-Axis Travel: 62"
W-Axis Travel: 31.5"
Table Dimensions: 49.25" x 63"
Table Rotation, Contouring: .001 Degrees
Table Weight Capacity: 25,000 Lbs
Table Index Rate: 5 RPM
Rapid Traverse: 590 IPM
Spindle Speeds: 10 - 4,000 RPM
Spindle Taper: #50 ANSI B5.50
Spindle Motor: 50 HP / 60 HP
Machine Height: 197"
Machine Floor Space: 240" x 300"
Machine Weight: 70,000 lbs.
Equipped With:

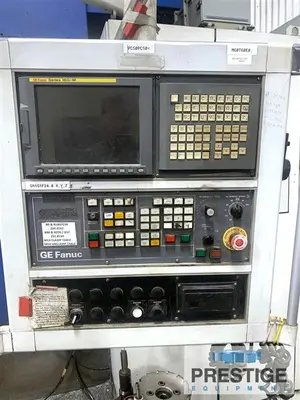

Fanuc 160i-MB CNC Control
60-Station Automatic Tool Changer

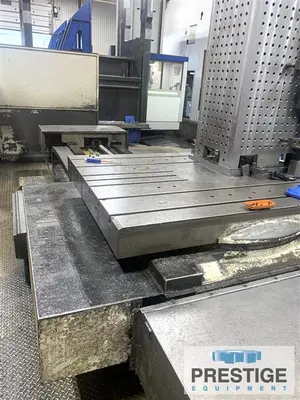

Built-In B-Axis Rotary Table
Coolant Thru Spindle
Heidenhain Linear Scales
Power Draw Bar
Renishaw MP10 Probe
Features:
Fanuc 160i-MB CNC Control
60 Station Automatic Tool Changer
Built-In B-Axis Rotary Table
Coolant Thru Spindle
