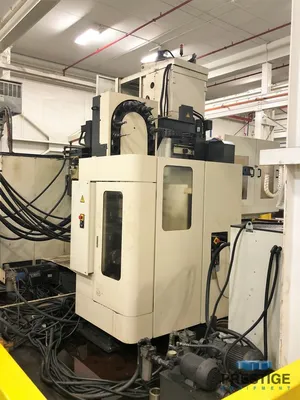

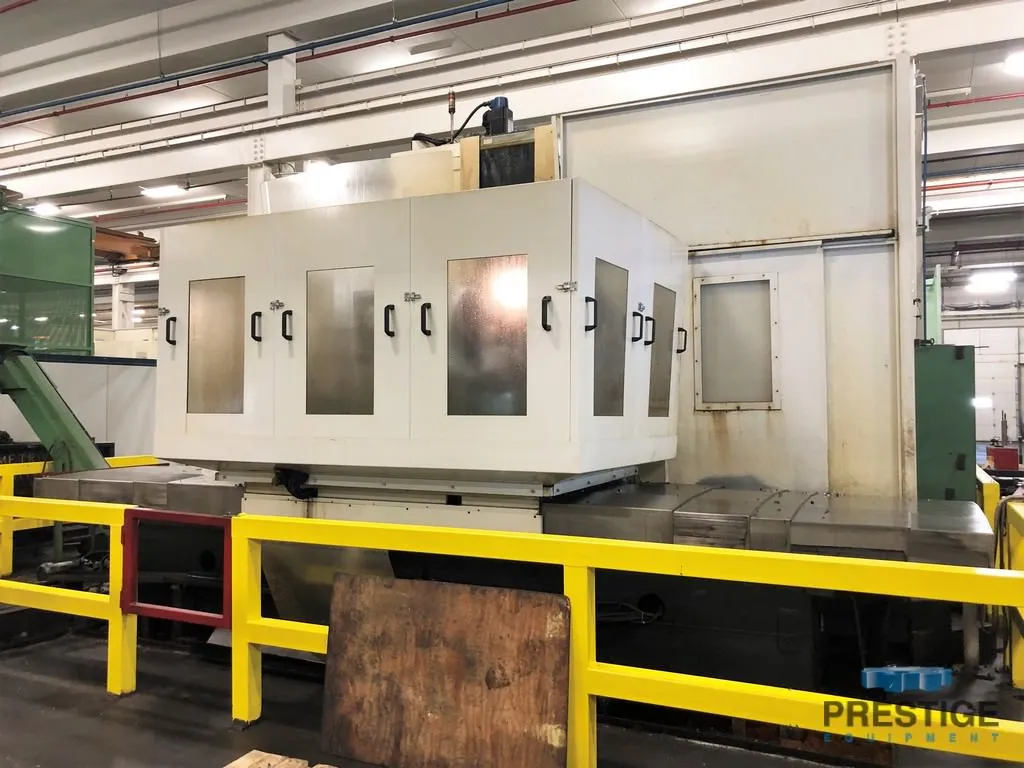

USED 1997 TOSHIBA BP-110.R20
Overview
Specifications
| Spindle Size | 4.33" | 109.98 mm |
|---|---|---|
| X-Horiz Tvl of Table | 100" | 2,540 mm |
| Y-Vert Tvl of Head | 65" | 1,651 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 80" | 2,032 mm |
| Table-L | 55" | 1,397 mm |
| Spindle Tvl. | 20" | 508 mm |
CAPACITY:
Spindle Diameter: 4.33"
Milling Spindle Nose Diameter: 8.85"
Spindle Taper: #50 ISO
Vertical Head Travel, Y: 65"
Table Travel, X: 100"
Column Infeed, Z: 45"
Spindle (Quill) Travel, W: 20"
Table Size: 80" x 55"
Table Size: 59" x 39" Rotary Table
Spindle Speeds: 5-3000 RPM
Table Load Capacity: 40,000 Lbs
Rapid Traverse: X,Y,Z Axes: 472.4 IPM
Rapid Traverse: W Axes: 196.9 IPM
Feed Rate: X,Y,Z Axes: 0.04 to 236.2 IPM
Feed Rate: W Axis: 0.04 to 196.9 IPM
Power Source (65 KVA): 200/220V 50/60 HZ
Floor Space: 289.4" x 259.8"
Overall Height: 162.8"
Equipped With:

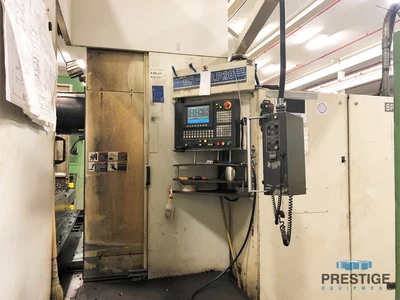

Tosnuc 888 CNC Control
38-Station Automatic Tool Changer
Ballscrews & Independent Servo Drives
80" x 55" T-Slotted Plain Table
59" x 39" Delken SCNI-100 CNC Rotary Table
Hardened & Ground Ways Box Ways
Through Spindle Coolant
Way Covers on X,Y & Z Axes
40 HP / 30 HP Spindle Drive Motor
Chip Conveyor
Features:
Tosnuc 888 CNC Control
38-Station Automatic Tool Changer
Ballscrews & Independent Servo Drives
80" x 55" T-Slotted Plain Table
59" x 39" Delken SCNI-100 CNC Rotary Table
Through Spindle Coolant
Hardened & Ground Ways Box Ways
Way Covers on X,Y & Z Axes
40 HP / 30 HP Spindle Drive Motor
Chip Conveyor
