| Spindle Size | 7" | 177.8 mm |
| X-Horiz Tvl of Table | 118" | 2,997.2 mm |
| Y-Vert Tvl of Head | 115" | 2,921 mm |
| Power | 75 hp | 55.9 kW |
| Table-W | 60.6" | 1,539.2 mm |
| Table-L | 84.96" | 2,158 mm |
| Spindle Tvl. | 60" | 1,524 mm |
Specifications:
Spindle Diameter: 7"
Taper In Spindle: #50
Vertical Head Travel, Y-Axis: 115"
Table Cross, X-Axis: 118"
Spindle Travel, Z-Axis: 60"
Saddle Travel, W-Axis: 84"
Pallet Size #1: 60" x 84"
Pallet Size #2: 60" x 96"
Table Load Capacity: 50,000 lbs
B-Axis, Table Rotation: 360,000 Degrees
Spindle Speeds:
Equipped With:

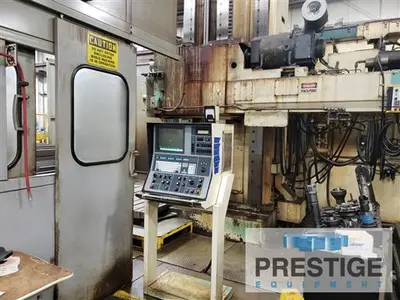

G & L 8000B CNC Control
120-Station Automatic Tool Changer

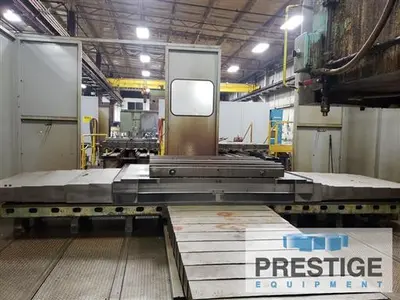

Pallet Shuttle System
60" x 84" Pallet #1
60" x 96" Pallet #2
Ball Screw and Independent AC Servo Motors
Thru-Spindle & Flood Coolant
Air Blast For Tool Changer
Numeriprobe Part Probe System
Tool Length Verifier
Manual Latch Plate with 6 Cam Locks for Attachment Changes
3-Way Column with Replaceable Box Ways
Triple Outrigger Table Supports
Steel Sliding Way Covers On X & W Axis
Chip Conveyor with Elevator
75 HP Spindle Drive 460/3/60 Cycle
NOTE:
Inspect Under Power In Plant!
Features:
G & L 8000B CNC Control
120 Station Automatic Tool Changer
Through Spindle Coolant
(2) Pallet Shuttle System
