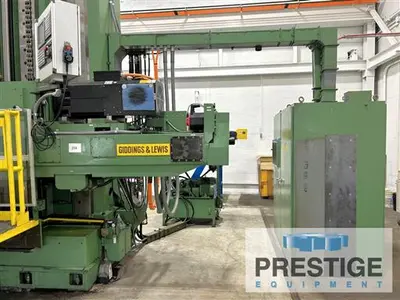

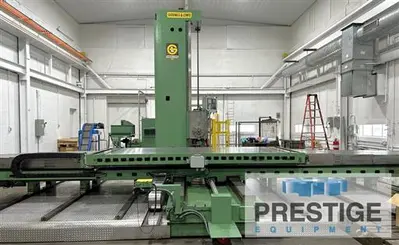

USED 2022 GIDDINGS & LEWIS H70-T
Overview
Specifications
| Spindle Size | 7" | 177.8 mm |
|---|---|---|
| X-Horiz Tvl of Table | 168" | 4,267.2 mm |
| Y-Vert Tvl of Head | 120" | 3,048 mm |
| Power | 75,100 hp | 56,002.1 kW |
| RPM | 51,200 RPM | 51,200 RPM |
| Table-W | 72" | 1,828.8 mm |
| Table-L | 170" | 4,318 mm |
| Spindle Tvl. | 48" | 1,219.2 mm |
SPECIFICATIONS:

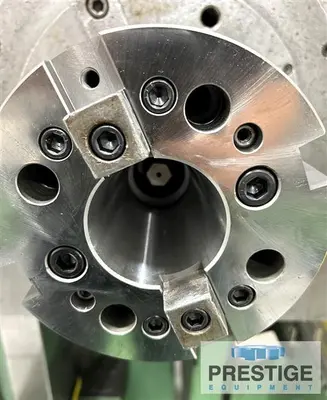

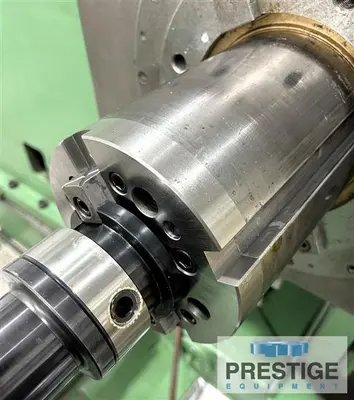

Spindle Diameter: 7"
Spindle Taper: #50
Vertical Head Travel, Y-Axis: 120"
Table Cross Travel, X-Axis: 168"
Spindle Travel, Z-Axis: 48"
Longitudinal Travel, W-Axis: 99"
Spindle Speeds: 5 to 1200 RPM

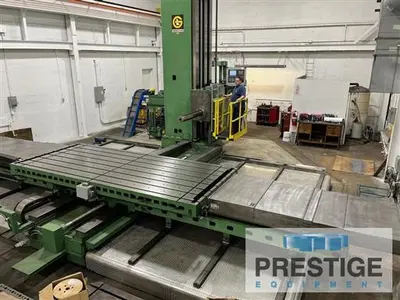

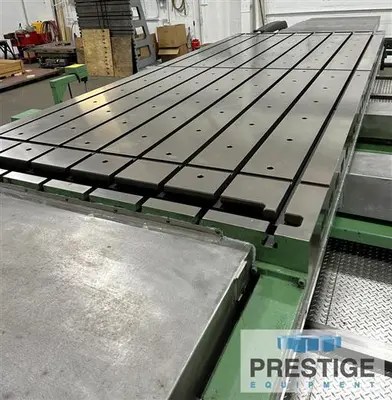

Table Size: 72" x 170"
Table Weight Capacity: 70,000 Lbs
Feeds, X,Y,Z,W Axes: .1 to 180 IPM
Spindle Motor: 75 HP/100 HP
Machine Footprint W x D: 403" x 373"
Machine Height: 239"
Equipped With:

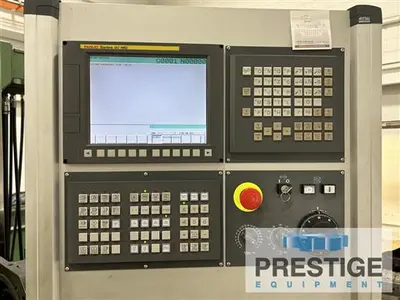

Fanuc 0i-MD CNC Control

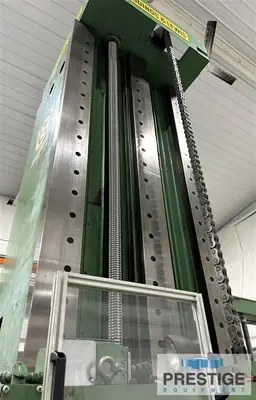

Heavy Duty Hardened Box Ways on All Axis
3-Way Vertical Column
Triple Outrigger Table Supports

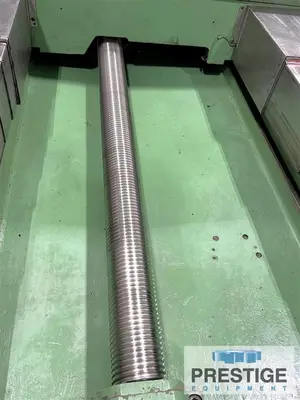

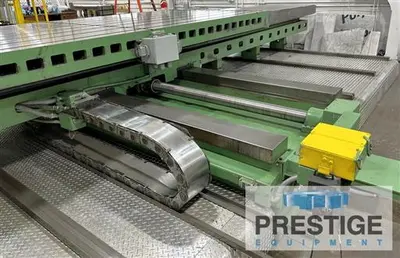

Ballscrews & Independent AC Servo Drives On All Axes

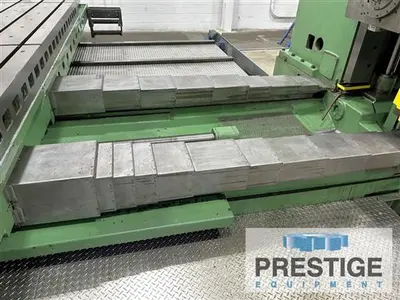

Steel Telescoping Way Covers
Giddings & Lewis Right Angle Head
NOTES:
In 2022 Machine Was Retrofit with New Fanuc CNC Controls, Ball Screws Reconditioned, All Hardened Ways Were Examined And Qualified "As New Condition". New AC Drives, New Fagor Servo Motors and Scales, New Fagor 75/100 HP AC Spindle Drive Motor, New Wipers, Re-Conditioned Telescoping Way Covers, New CAT 50 Spindle Taper, Power Draw Bar,Spindle Tested and Qualified.
Inspect Under Power
Features:
Fanuc Oi-MD CNC
70,000 lb Table Capacity
