| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Table | 137.79" | 3,499.9 mm |
| Y-Vert Tvl of Head | 125.98" | 3,199.9 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 98.42" | 2,499.9 mm |
| Table-L | 98.42" | 2,499.9 mm |
| Spindle Tvl. | 27.55" | 699.77 mm |
CAPACITY:

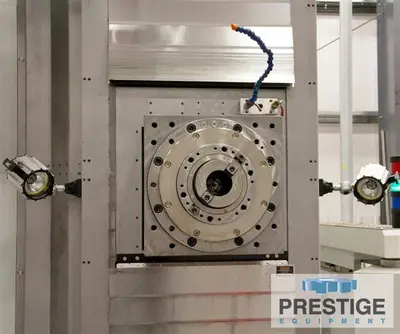

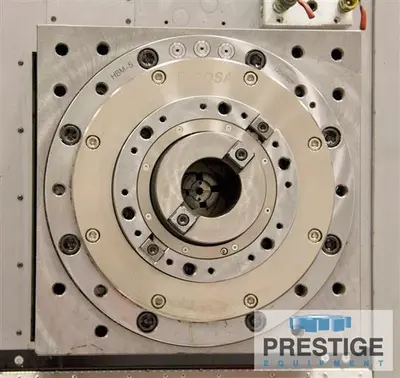

Spindle Diameter: 5.12"
Spindle Taper: ISO #50
Cross Travel, X-Axis: 137.79"
Vertical Head Travel, Y-Axis: 125.98"
Column Longitudinal Travel, W-Axis: 78.74"
Spindle Travel, Z-Axis: 27.55"
Spindle Speeds, 2-Speed: 35-3000 RPM

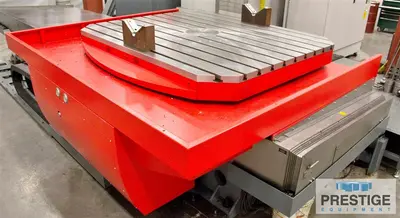

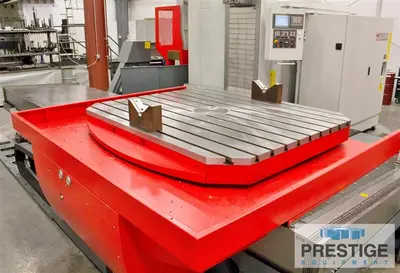

Built-In Rotary Table, B-Axis: 98.42" x 98.42"
Table Weight Capacity: 44,000 Lbs.
Rotary Table, Full B-Axis,: 0.001 Deg.
Equipped With:

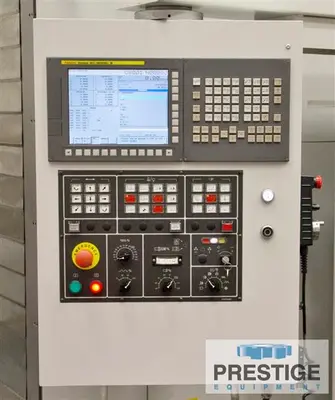

FANUC 31i MB CNC Control and 10.4" LCD Display
RS-232 Interface
Fanuc Spindle & Fanuc Axes Servo Motor Package
Helical Interpolation
T-Type Construction, Infeeding Column
Thru Spindle Coolant
98.42" x 98.42 Built-In Rotary Table (360,000 Deg.)

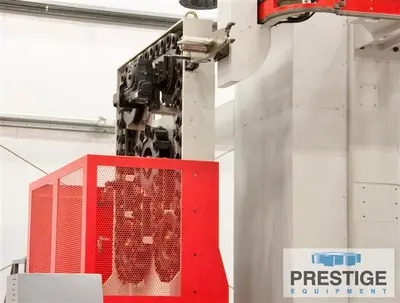

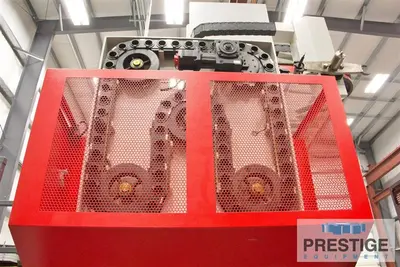

60 Position Automatic Tool Changer (CAT #50)
Linear Scale for X/Y/Z Axes

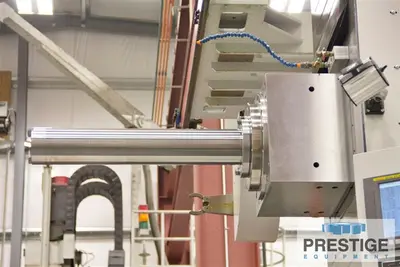

Spindle Extension Sleeve
Coolant Thru Spindle Preparation
Coolant System
Auto Lubrication System
49 HP/60 HP Spindle Drive Motor
Chip Conveyor
1-Year Parts Warranty on Machine
2-Year Parts Warranty on CNC Control
NOTE:
Delivery 5-6 Months From Order
Features:
FANUC 31iMB CNC Control
60 Station Automatic Tool Changer
Thru Spindle Coolant
