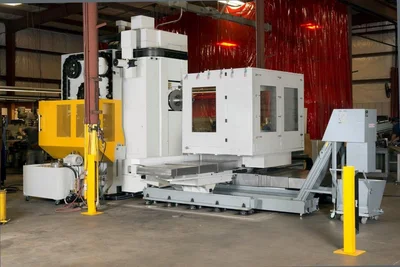

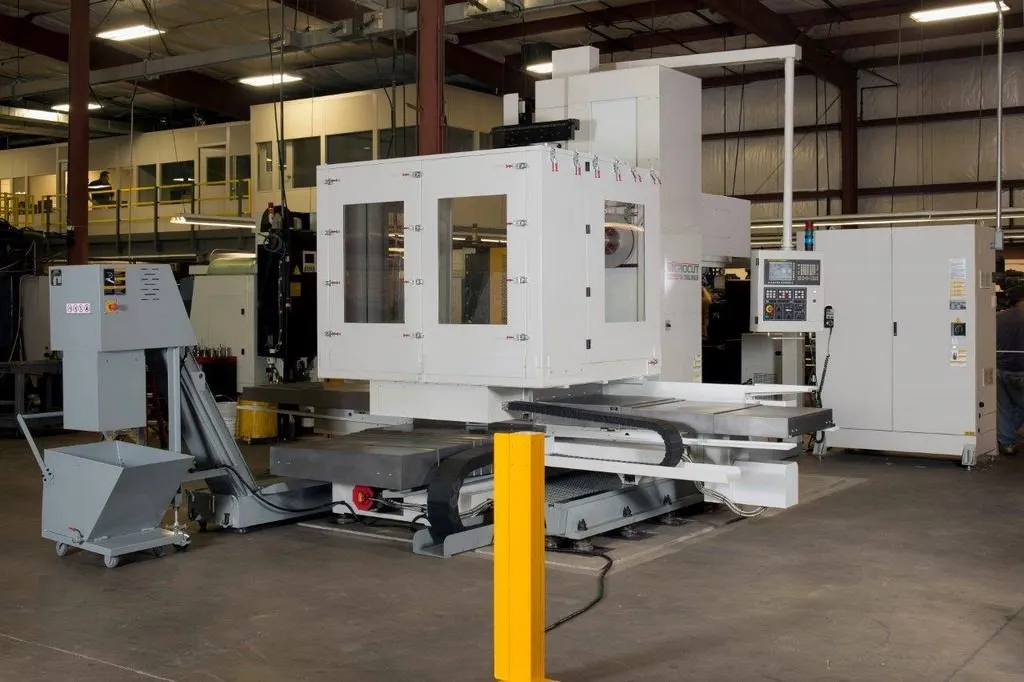

USED 2026 MICROCUT HBM-4

CAPACITY:
Spindle Diameter...................... 4.33": 4.33"
Spindle Taper......................... ISO #50: ISO #50
Vertical Head Travel, Y-Axis: 62.99"
Table Travel, X-Axis: 86.61"
Saddle Travel, W-Axis: 62.99"
Spindle Travel, Z-Axis: 21.65"
Distance Spindle To Table Center...... 4.72" - 67.71": 4.72" - 67.71"
Built in Rotary Table................. 49.21" x 59.05": 49.21" x 59.05"
Table Index........................... 0.001 Degree: 0.001 Degree
Rapid Traverse: x,y,z Axis............ 472.44 IPM: 472.44 IPM
Feed Rates: x,y,z Axis............... .04-196.85 IPM: .04-196.85 IPM
Table Load Capacity................... 11,000 LBS: 11,000 LBS
Spindle Speeds (2 Ranges)............. 35-3000 RPM: 35-3000 RPM
Tool Change Time (Tool to Tool)....... 9 Seconds: 9 Seconds
Maximum Tool Weight in Tool Changer... 55 LBS: 55 LBS

Equipped With:

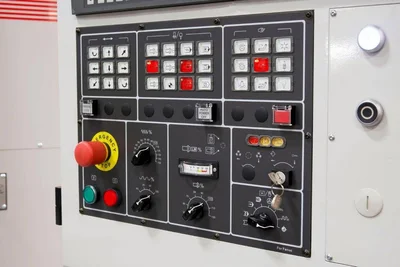

FANUC 31i MB CNC Control w/ 10.4" LCD Full Key Panel
MPG
Helical Interpolation

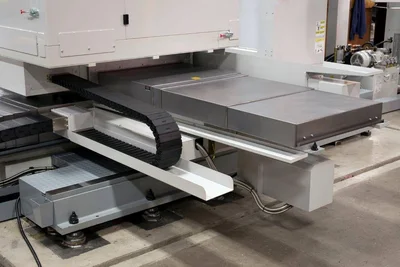

Built In B-Axis Rotary Table (Positioning)
Hardened & Ground Ways
60 Station Automatic Tool Changer (CAT #50)
Rigid Tapping
Coolant Thru Spindle (70 Bar)

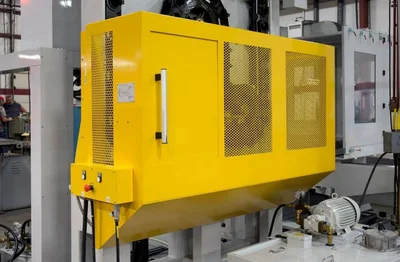

Spindle Oil Chiller
Spindle Vibration Supervision Function

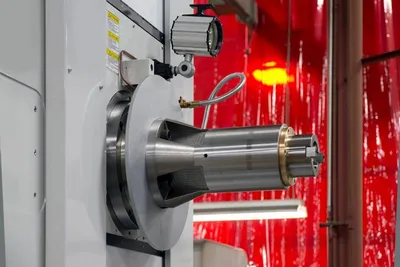

Spindle Extension Sleeve
Meehanite Cast Iron Struction
Telescoping Way Covers
Auto Power Off

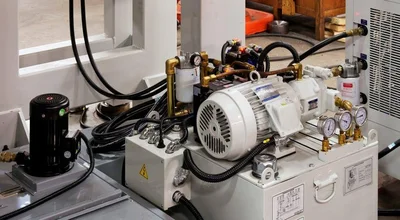

Auto Lubrication System

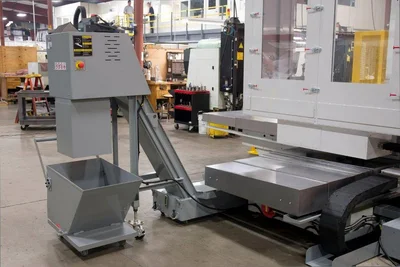

Chip Auger For Table & Chip Conveyor
29 HP/ 24 HP Spindle Drive Motor 220/3/60

MACHINE WEIGHT AND FLOOR SPACE:
Floor Space: 305" L x 186" W x 146" H
Machine Weight: 50,000 LBS

NOTE:
Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control
Lead Time 6-8 Months From Date Of Order

Features:
Fanuc 31i MB CNC Control
Through Spindle Coolant
60 Station Automatic Tool Changer
