Unused 304 Stainless Steel Centrifugal Spray Drying System

Main Product Description:

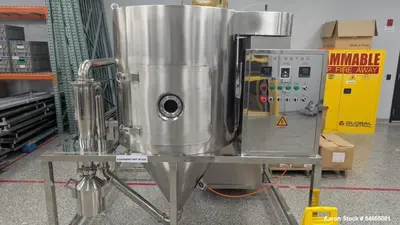

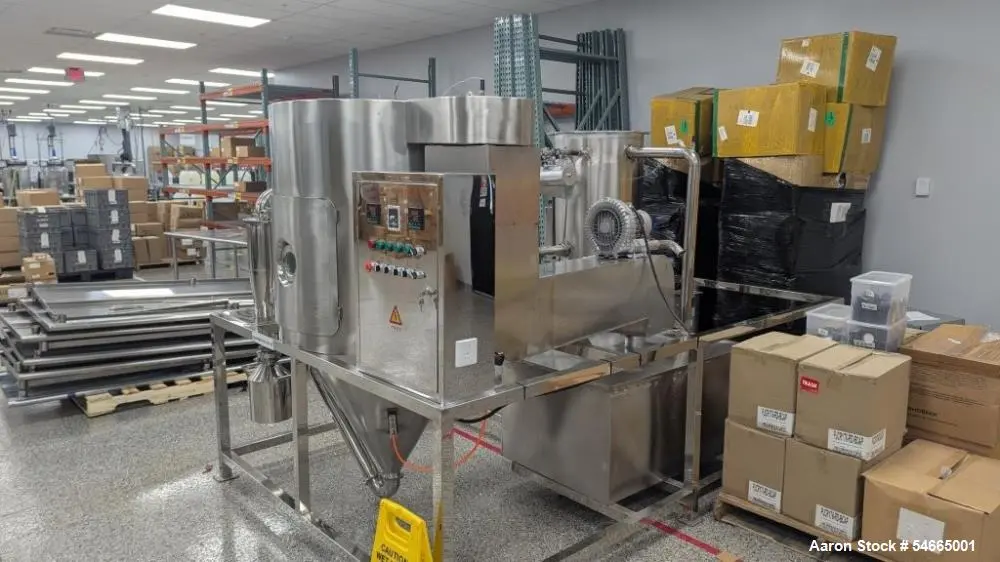

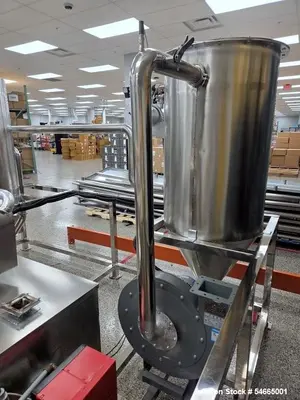

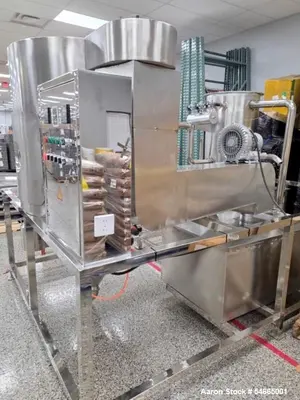

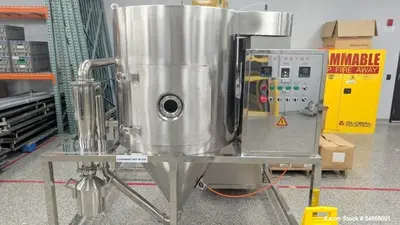

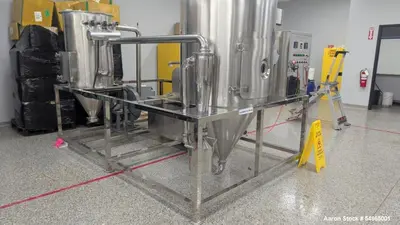

Unused 304 stainless steel spray dryer with a maximum evaporation rate of 15 liters per hour. The unit is gas powered and utilizes a centrifugal spraying nozzle with mechanical transmission. Inlet temperature is automatically controlled from approximately 150°C to 200°C (302°F to 392°F), with an outlet temperature range of approximately 80°C to 100°C (176°F to 212°F). The atomizer operates at 2,500 RPM with a 60 mm spray disk diameter. The system is rated for at least 95% powder recovery and approximately 3% to 5% finished product moisture content. Construction includes an 80 mm aluminum silicate insulating layer. The spray dryer is mounted on a frame with a stainless steel dust collector equipped with three electromagnetic valves and ten cloth filter bags.
Specifications:

Equipment Type: Spray dryer
Condition: Unused
Construction: 304 stainless steel
Maximum Evaporation Rate: 15 liters/hour

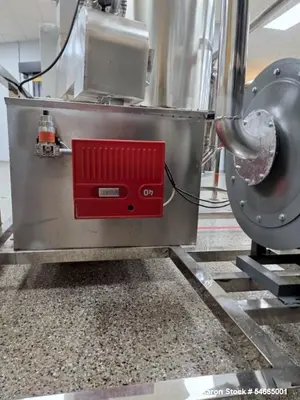

Heat Source: Gas powered
Atomization Type: Centrifugal spraying nozzle
Transmission: Mechanical
Inlet Temperature: 150°C to 200°C (302°F to 392°F)
Inlet Temperature Control: Automatic
Outlet Temperature: 80°C to 100°C (176°F to 212°F)
Atomizer Speed: 2,500 RPM
Spray Disk Diameter: 60 mm
Powder Recovery: ≥95%
Insulation: 80 mm aluminum silicate layer
Finished Product Moisture Content: 3% to 5%

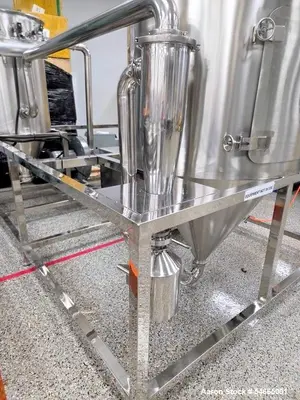

Mounting: Frame mounted

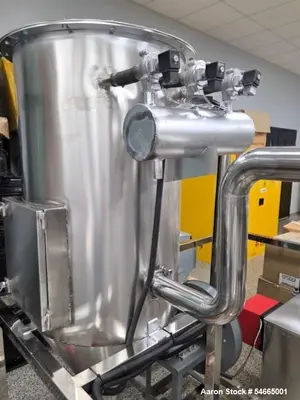

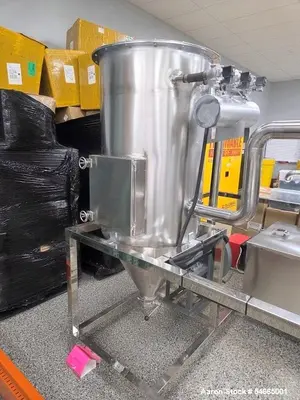

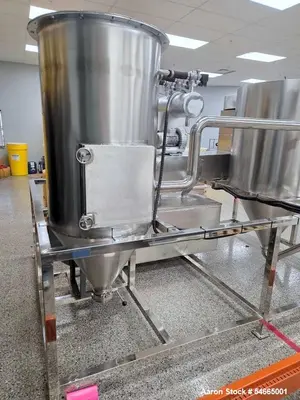

Dust Collector Construction: Stainless steel
Dust Collector Diameter: 640 mm
Dust Collector Straight Side Length: 1,000 mm
Dust Collector Vertical Body Length: 300 mm
Dust Collector Bottom Outlet Diameter: 108 mm
Electromagnetic Valves: (3)
Cloth Filter Bags: (10)

Applications:

Liquid-to-powder drying
Powder production
Product dehydration
Fine powder processing
Small-scale spray drying
Pilot-scale drying applications
Specialty chemical processing
Food ingredient processing
Powdered product development
Compatible pharmaceutical or nutraceutical processing applications

Suitable Products / Materials:

Compatible liquid feeds
Compatible slurries
Compatible emulsions
Food ingredients
Specialty chemicals
Nutraceutical ingredients
Pharmaceutical ingredients
Flavor ingredients
Powdered formulations
Other materials suitable for centrifugal spray drying and 304 stainless steel contact surfaces

FAQs:

What is the evaporation capacity of this spray dryer?
The maximum stated evaporation rate is 15 liters per hour.
Is this spray dryer used?
No. The unit is listed as unused.
What material is the spray dryer constructed from?
The unit is constructed of 304 stainless steel.
What type of atomizer does the spray dryer use?
The system uses a centrifugal spraying nozzle with mechanical transmission.
What is the atomizer speed?
The stated atomizer speed is 2,500 RPM.
What is the spray disk diameter?
The spray disk diameter is 60 mm.
What is the inlet temperature range?
The automatically controlled inlet temperature range is approximately 150°C to 200°C, or 302°F to 392°F.
What is the outlet temperature range?
The stated outlet temperature range is approximately 80°C to 100°C, or 176°F to 212°F.
What powder recovery rate is specified?
The system is rated for powder recovery of at least 95%.
What is the expected finished product moisture content?
The stated finished product moisture content is approximately 3% to 5%.
Does this spray dryer include a dust collector?
Yes. The unit is mounted on a frame with a stainless steel dust collector equipped with three electromagnetic valves and ten cloth bags.
Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can assist with coordinating freight and shipping options for industrial process equipment based on equipment location, dimensions, weight, and destination.
How can Aaron Equipment help with this spray dryer?
Aaron Equipment can provide available equipment information, help review the listed specifications, assist with logistics, and support buyers evaluating the unit for a compatible spray drying application.
