| Spindle Size | 4.33" | 109.98 mm |
| X-Horiz Tvl of Table | 78.74" | 2,000 mm |
| Y-Vert Tvl of Head | 50" | 1,270 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 1,000 RPM | 1,000 RPM |
| Table-W | 55.12" | 1,400 mm |
| Table-L | 63.99" | 1,625.3 mm |
| Spindle Tvl. | 28" | 711.2 mm |
CAPACITY:
Spindle Diameter: 4.33"
Spindle Taper: #50
Vertical Head Travel, Y-Axis: 50"
Table Cross Travel, X-Axis: 78.74"
Saddle Travel, W-Axis: 49"
Spindle Travel, Z-Axis: 28"
Spindle Speeds: 5.6-1000 RPM
Rotary Table: 55.12" x 63.99"
Table Load Capacity: 13,860 Lbs
Machine Weight: 50,000 Lbs
Equipped With:

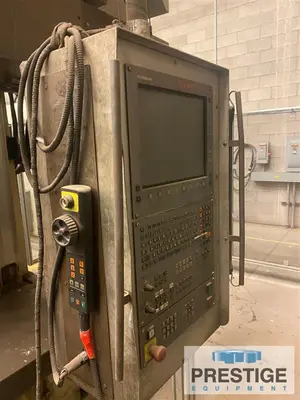

Heidenhain TNC 155 CNC Control
Pendant Mounted CRT
RS 232 Communication Port
Ball Screws & Servo Drive Motors
Built In Power Indexing Rotary Table
Power Braw Bar
27.5" Diameter Built In Facing Head
Hardened Ways
Way Covers
40 HP Spindle Motor
