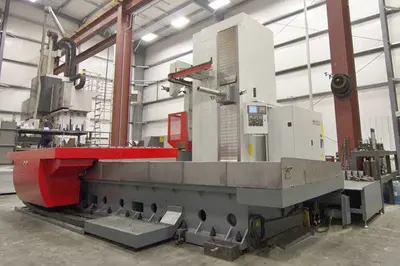

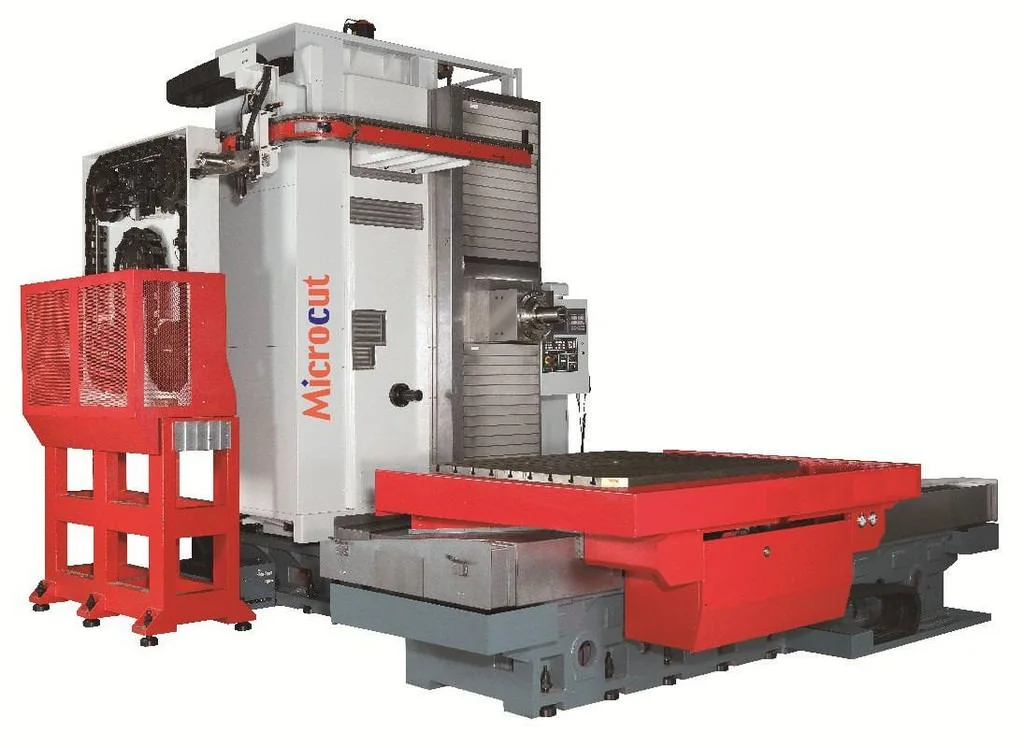

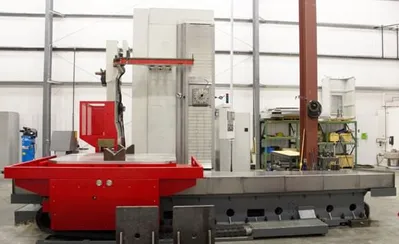

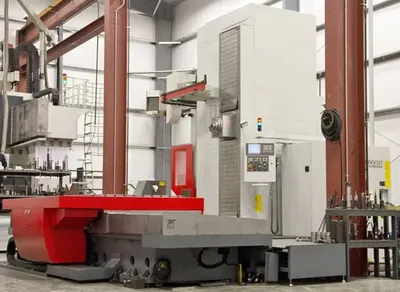

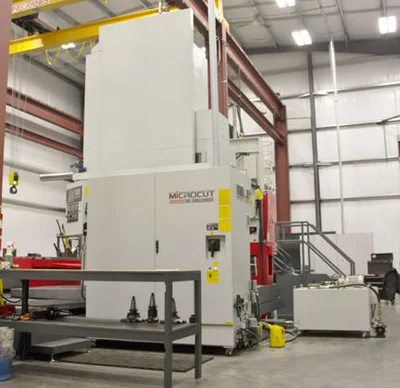

USED 2025 MICROCUT HBM-5T

SPECIFICATION:

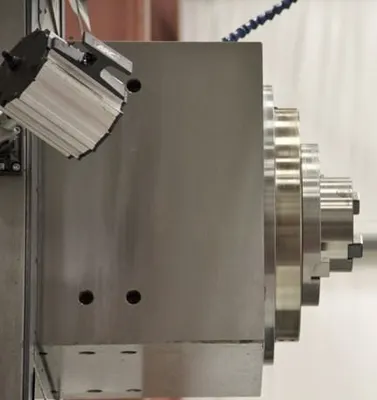

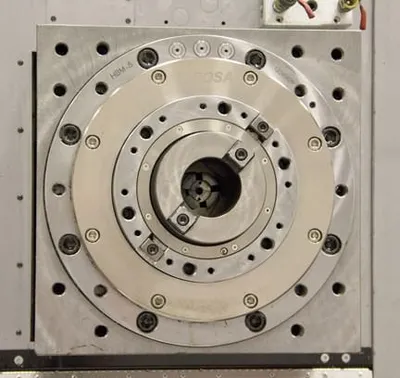

Spindle Diameter....................... 5.12": 5.12"
Spindle Taper.......................... ISO #50: ISO #50
Vertical Head Travel, Y-Axis: 102.36"
Cross Travel, X-Axis: 137.79"
Column Longitudinal Travel, Z-Axis: 55.11"
Spindle Travel, W-Axis: 27.55
Distance Between Spindle Nose & Table . 3.93"-78.74":
Spindle Speeds, 2-Speed: 35-3000 RPM
Built-In Rotary Table, B-Axis: 70.86" x 86.61"
Table Weight Capacity (Option): 44,000 Lbs.
Rotary Table, Full B-Axis,: 0.001 Deg.
Approx. Dimensions: 333" x 275" x 199"
Approx. Machine Weight: 107,800 LBS

Equipped With:

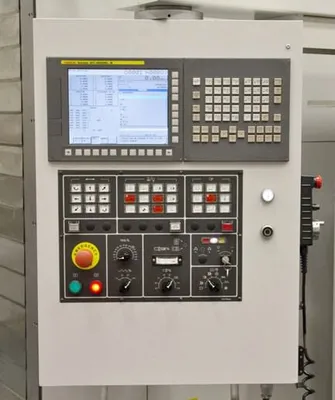

FANUC 31i MB CNC Control and 10.4" LCD Display
Helical Interpolation
Fanuc Spindle & Fanuc Axes Servo Motor Package
T-Type Construction, Infeeding Column

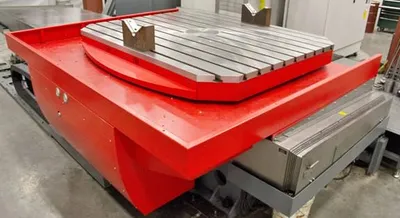

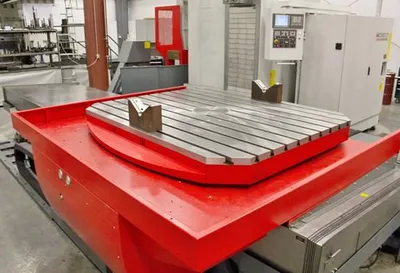

70.86" x 86.6" Built-In Rotary Table (360,000 Deg.)

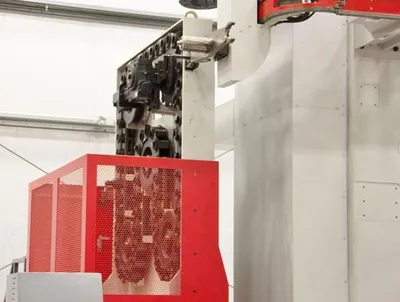

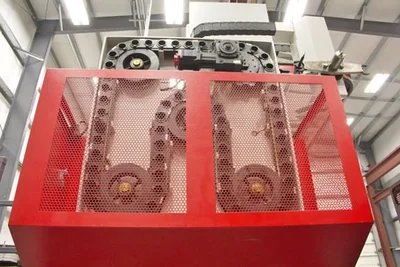

60 Position Automatic Tool Changer (CAT #50)
Linear Scale for X/Y/Z Axes
Encoder on B-Axis
Spindle Vibration Supervision Function (SVS)

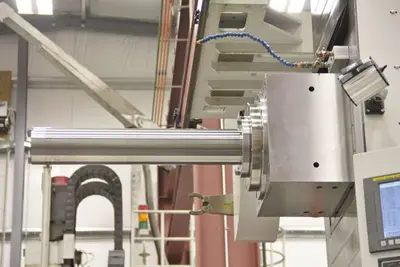

Spindle Extension Sleeve
Meehanite Cast Iron Construction
Roller Type Linear Guide Ways on X/Z Axes
Box Way with Hardened and Ground on Y Axis
Coolant Thru Spindle (70 Bar High Pressure Pump)
Chip Conveyor
Auto Lubrication System
MPG Box
49 HP/60 HP Spindle Drive Motor 220/3/60, 95 KVA

NOTES:
Delivery 8 Months From Order
1-Year Parts and Labor Warranty on Machine
2-Year Parts and Labor Warranty on CNC Control

Features:
Brand New 8-Month Delivery
FANUC 31imB CNC Control
60 Station Automatic Tool Changer
