| Spindle Size | 7.87" | 199.9 mm |
| X-Horiz Tvl of Table | 59.05" | 1,499.9 mm |
| Y-Vert Tvl of Head | 47.2" | 1,198.9 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| Table-W | 47.2" | 1,198.9 mm |
| Table-L | 39.37" | 1,000 mm |
| Spindle Tvl. | 15.74" | 399.8 mm |
TRAVELS:
Spindle Diameter: 7.87"
Table Travel, X-Axis: 59.05"
Vertical Travel Y-Axis: 47.2"
Saddle Travel, W-Axis: 35.4"
Spindle Travel, Z-Axis: 15.74"
B-Axis: .001 degrees

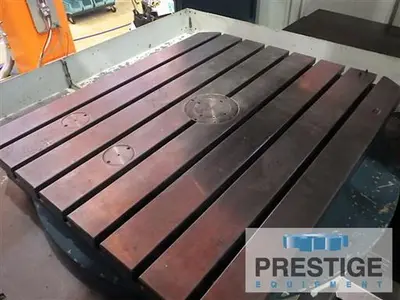

Table Size: 47.2" x 39.37"
Table Capacity: 7700 LBS
Spindle Speeds, 2- Ranges: 12,000 RPM
Spindle Drive: 40 HP
Spindle Taper: #50 BT
Tool Changer: 30 ATC
Machine Dimensions, W x D.............. 198" x 233": 198" x 233"
Machine Height: 160"
Machine Weight: 66,000 LBS
Equipped With:

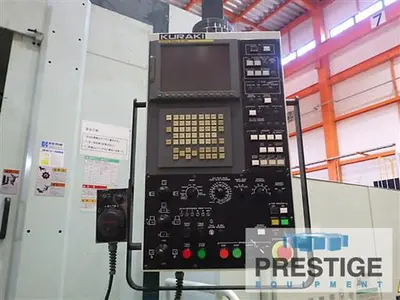

Fanuc 16i-MB 4-Axis CNC Control

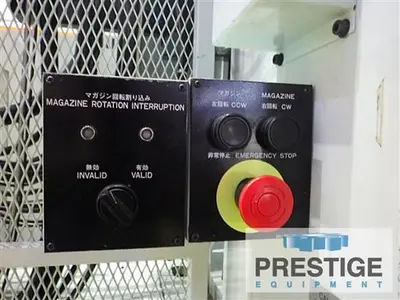

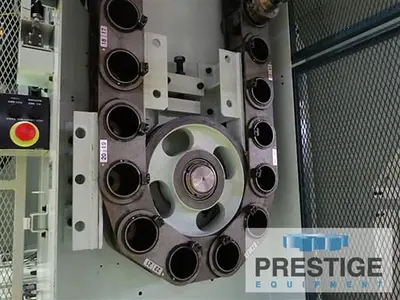

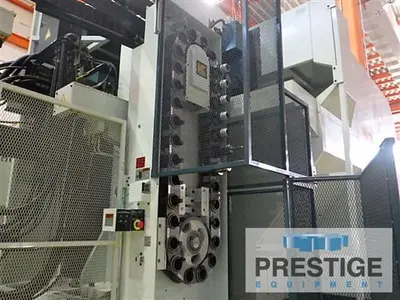

30-Station Automatics Tool Changer

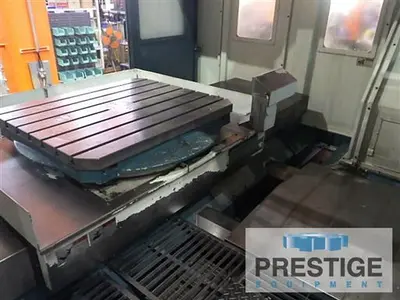

Full 4-Axis B-Axis Table

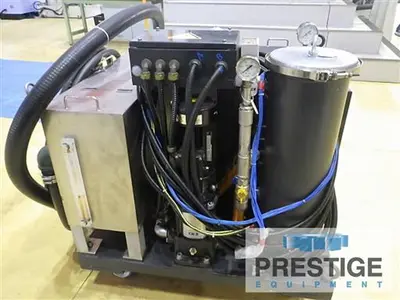

Coolant Thru Spindle

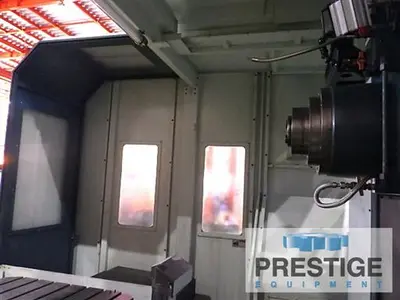

Full Chip & Splash Enclosure

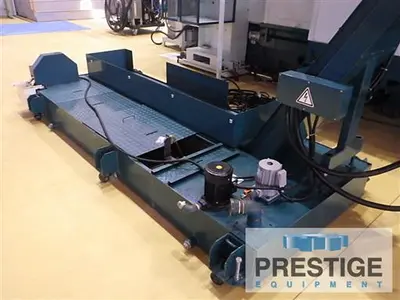

Chip Conveyor
Features:
Fanuc 16i-MB CNC Control
30-Station Automatics Tool Changer
Full 4-Axis B-Axis Table
Coolant Thru Spindle
Full Chip & Splash Enclosure
Chip Conveyor
