| Spindle Size | 6" | 152.4 mm |
| X-Horiz Tvl of Table | 96" | 2,438.4 mm |
| Y-Vert Tvl of Head | 108" | 2,743.2 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 60" | 1,524 mm |
| Table-L | 60" | 1,524 mm |
Specifications:
Spindle Diameter: 6"
Spindle Taper: 50 ANSI B5.50
X-Axis Table Travel: 96"
Y-Axis Head Travel: 108"
Y-Axis Head Travel Above Pallet: 86"
Z-Axis Spin Travel: 48"
W-Axis Saddle Longitudinal Travel: 62"
B-Axis Pallet Rotation: 360,000 Positions
Pallet Weight Capacity, Heavy Duty: 30,000 Lbs
Spindle Speeds (4-Ranges): 12 to 2500 RPM
Rapid Traverse Rate, X,Y Axes: 450 IPM
Rapid Traverse Rate, Z,W Axes: 300 IPM
Feeds, X,Y,Z,W Axes: .1 to 150 IPM
Spindle Motor: 50 HP 460/3/60
Equipped With:
Giddings & Lewis 8000B CNC Control
120-Station Automatic Tool Changer

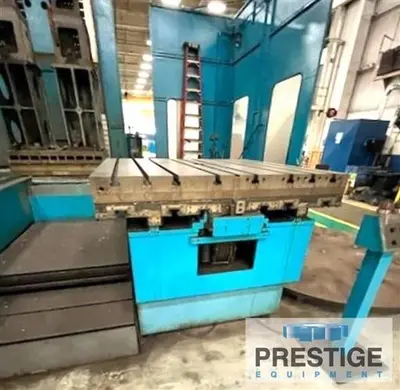

(2) 60" x 60" Pallets with Shuttle System
Thru-Spindle Coolant
Flood Coolant
Air Blast For Tool Change
B-Axis Built-In Rotary Table
Hardened Ways on Bed & Column
Steel Telescoping Way Covers

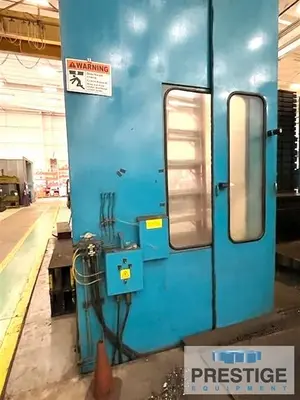

Coolant and Chip Enclosure
NOTE:
Large Quantity of Tooling, and Two sets of Angle Plates
Machine Currently in Storage.
Call for additional information.
Features:
120-Station Automatic Tool Changer

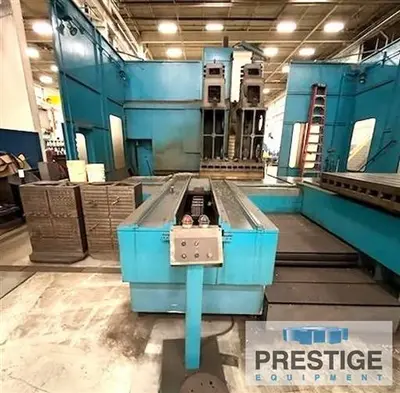

2-Pallet Shuttle 60" x 60" Pallets
B-Axis Rotary Table
Thru Spindle Coolant
