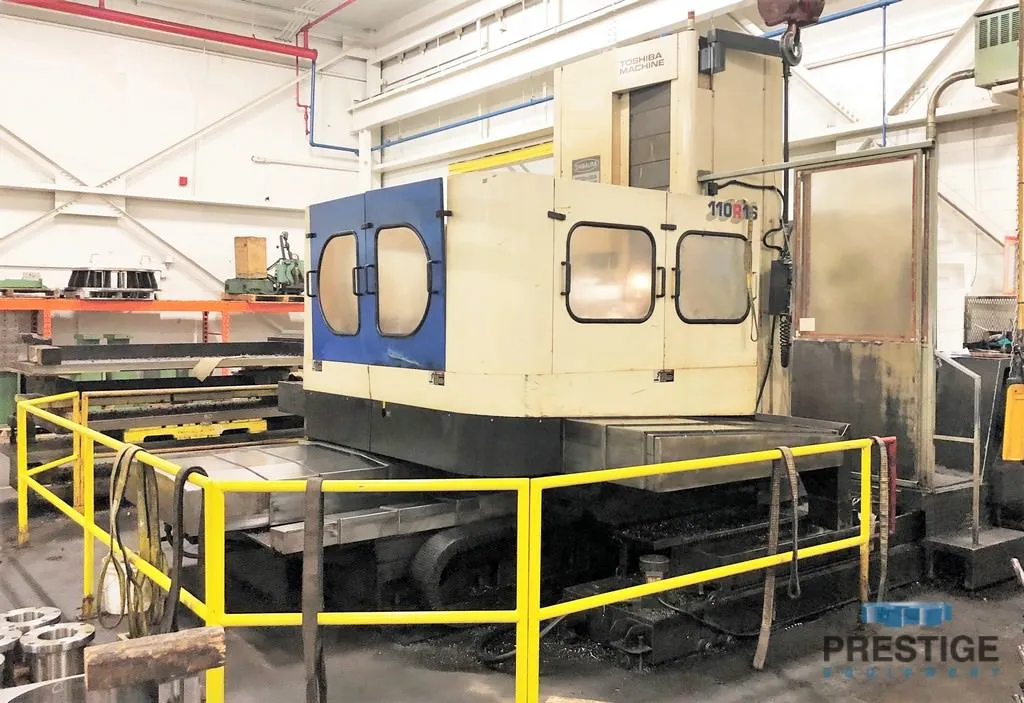

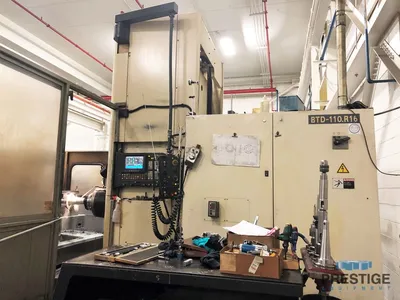

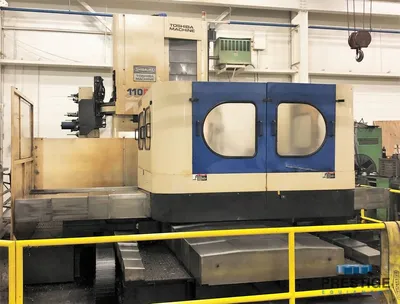

USED 1998 TOSHIBA BTD-110.R16
Overview
Specifications
| Spindle Size | 4.3" | 109.22 mm |
|---|---|---|
| X-Horiz Tvl of Table | 78.74" | 2,000 mm |
| Y-Vert Tvl of Head | 59" | 1,498.6 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 55" | 1,397 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 19.71" | 500.63 mm |
CAPACITY:
Spindle Diameter: 4.3"
Milling Spindle Diameter: 8.86"
Spindle Taper: #50 ISO
Vertical Head Travel, Y-Axis: 59"
Table Cross Travel, X-Axis: 78.74"
Spindle Travel, Z-Axis: 19.71"
Saddle Travel, W-Axis: 57.08"
Rotary Table Size: 55" x 63"
Table Index: 0.001 Degree
Feed Rates: .04-236.2 IPM
Rapid Traverse: 394 IPM
Table Load Capacity: 13,860 LBS
Spindle Speeds (3 Ranges): 5-3,000 RPM
Floor Space: 202" x 242.5"
Machine Weight: 63,800 LBS
Equipped With:

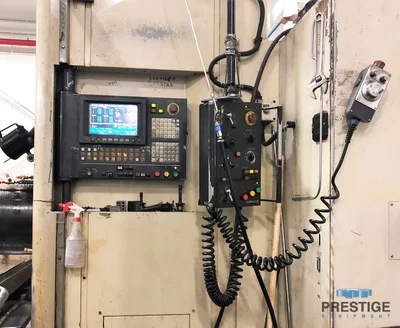

Tosnuc 888 CNC Control
55" x 63" Full B-Axis Rotary Table

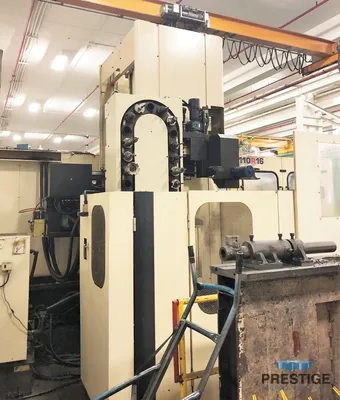

38-Station Automatic Tool Changer
Marposs Probing System
Coolant System & Splash Guards
Full Enclosures
Chip Conveyor
30 HP / 25 HP Spindle Drive Motor
NOTE:
Inspect In Plant Under Power!
Features:
Tosnuc 888 CNC Controls
55" x 63" Full B-Axis Rotary Table
38-Station Automatic Tool Changer
Marposs Probing System
Coolant System & Splash Guards
Full Enclosures
Chip Conveyor
