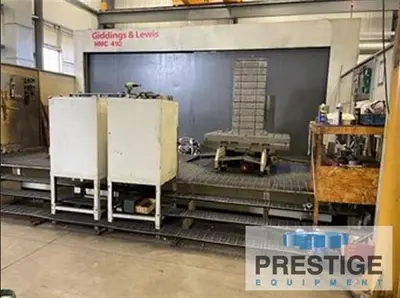

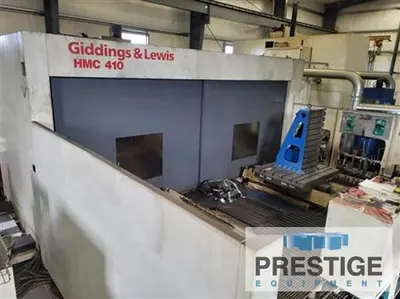

USED 2004 GIDDINGS & LEWIS HMC 410
Overview
Specifications
| X-Axis | 129.92" | 3,300 mm |
|---|---|---|
| Y-Axis | 82.67" | 2,099.8 mm |
| Z-Axis | 78.74" | 2,000 mm |
| Power | 5,060 hp | 3,773.2 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 120 | 120 |
| Taper | ANSI B5.50 | ANSI B5.50 |
| Pallet-W | 62.99" | 1,599.9 mm |
| Pallet-L | 49.21" | 1,249.9 mm |
| # Axis | 4 | 4 |
SPECIFICATIONS:
X-Axis, Cross Travel of Pallet: 129.92"
Y-Axis, Vertical Head Travel: 82.67"
Z-Axis, Column Infeed: 78.74"
B-Axis, Pallet Rotation: 360,000
Spindle Taper: ANSI B5.50
Pallet Size: 62.99" x 49.21"
Number of Pallets: 2
Maximum Swing of In Load Area: 118.11"
Pallet Weight Capacity: 15,430 Lbs
Feed Rates All Axes: .001-630 IPM
Rapid Traverse All Axes: 1260 IPM
Spindle Speeds, Infinitely Variable: 30-6000 RPM
Maximum Rotatable Part Size: 118.11"
Equipped With:
Fanuc 16iM 4-Axis CNC Control
120 Station Automatic Tool Changer
Pallet Shuttle Changer
Thru-Spindle Coolant, 70 Bar,(1015 PSI)
Paper Filtration
Linear Scales All Axis
Renishaw Part Probe
Chip Conveyer
50 HP/60 HP AC Spindle Motor
Features:
100 Station Automatic Tool Changer
2-Pallet Shuttle 62.99" x 49.21"
Thru-Spindle Coolant
Linear Scales
Fanuc 16M CNC Control
