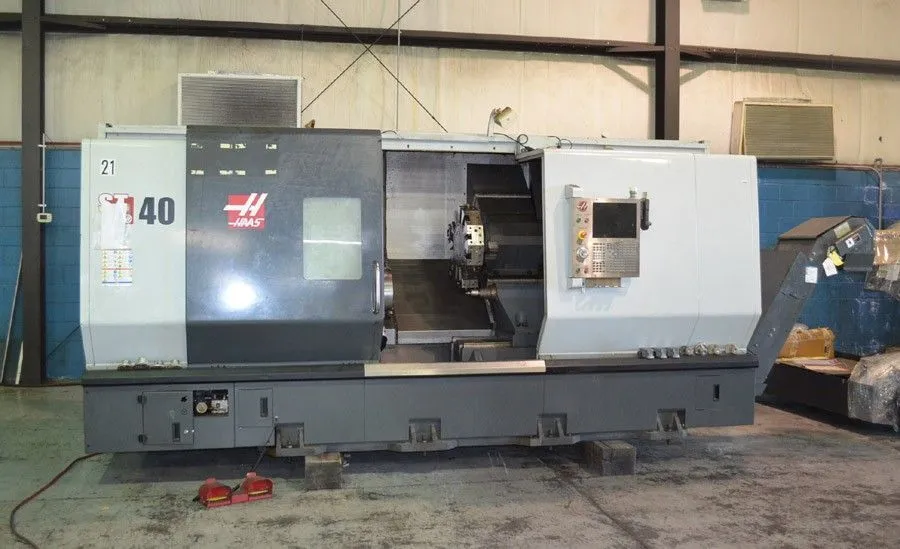

USED 2014 HAAS ST-40

2014 HAAS ST-40 CNC Turning Center #8386

Specifications (subject to buyer verification):

SWING DIAMETER
Over Front Apron 34.5 "
Over Cross Slide 25.5 "
Over Tailstock 25.5 "
CAPACITIES
Max Cutting Diameter (varies with turret) 25.5 "
Max Cutting Length (without workholding) 44 "
Bar Capacity 4.0 "
TRAVELS & FEEDRATES
X Axis 17 "
Z Axis 44 "
Rapids on X 710 in/min
Rapids on Z 710 in/min
Max Thrust X 5500 lb
Max Thrust Z 9000 lb
SPINDLE Max Rating 55 hp
Max Speed 2400 rpm
Max Torque 2100 ft-lb @ 150 rpm
Spindle Nose A2-8
Spindle Bore ø 4.62 "
TURRET
Number of Tools 12 Stations
OD vs ID Tools Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret ) 4.37 "
GENERAL
Air Required 4 scfm, 100 psi

Equipped With (subject to buyer verification):
Haas CNC Control
Kitagawa B-15 3-Jaw Hydraulic Chuck
Programmable Servo MT5 Tailstock
Rigid Tapping
Tool Presetter
Chip Conveyor
Remote Jog Handle
Extra Performance Option 55HP Spindle Drive
2 Speed Gear Box
Bolt-On Style Turret
Extended Tool Pocket up to 33” (ETP-40)
