| Spindle Size | 7.87" | 199.9 mm |
| X-Horiz Tvl of Table | 118.11" | 3,000 mm |
| Y-Vert Tvl of Head | 90.55" | 2,300 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| Table-W | 78.74" | 2,000 mm |
| Table-L | 86.61" | 2,199.9 mm |
| Spindle Tvl. | 15.74" | 399.8 mm |
CAPACITY:
Spindle Diameter: 7.87"
Spindle Taper: #50 BT
Vertical Head Travel, Y-Axis: 90.55"
Table Travel, X-Axis: 118.11"
Spindle Travel, W-Axis: 15.74"
Column Travel, Z-Axis: 62.99"
Table Size: 86.61" x 78.74"
Table Load Capacity: 44,000 LBS
Rotary Table, B-Axis: .001 Degrees
Spindle Speeds: 50-8000 RPM
Spindle Speed Ranges: 2
Spindle Motor: 40 HP (30 KW)
Floor Space: 324.9" x 315"
Machine Height: 212.6"
Machine Weight: 92,500 lbs
Equipped With:

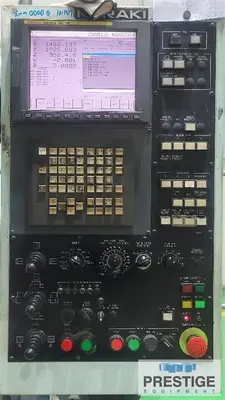

Fanuc 16i-M CNC Control

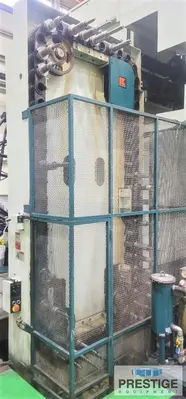

60-Station Automatic Tool Changer

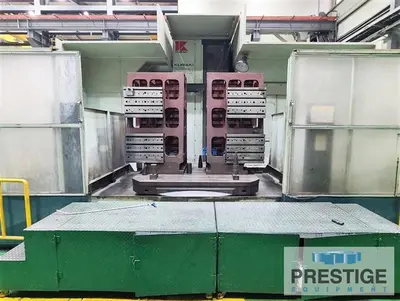

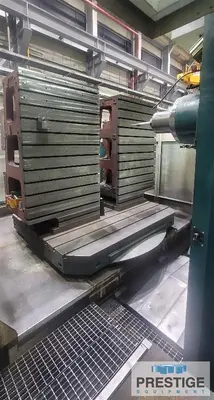

86.61" x 78.74" B-Axis Rotary Table
44,000 lb Table Capacity
Chip Auger & Chip Conveyor
Through Spindle Coolant
40 HP Spindle Motor
Features:
Fanuc 16i-M 4-Axis CNC Controls
60-Station Automatic Tool Changer
86.61" x 78.74" B-Axis Rotary Table
44,000 lb Table Capacity
Thru-Spindle Coolant
