| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Table | 157.48" | 4,000 mm |
| Y-Vert Tvl of Head | 82.67" | 2,099.8 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 70.86" | 1,799.8 mm |
| Table-L | 78.74" | 2,000 mm |
| Spindle Tvl. | 27.55" | 699.77 mm |
SPECIFICATIONS:

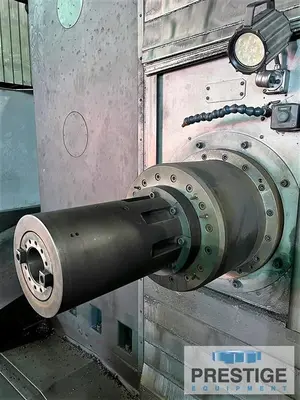

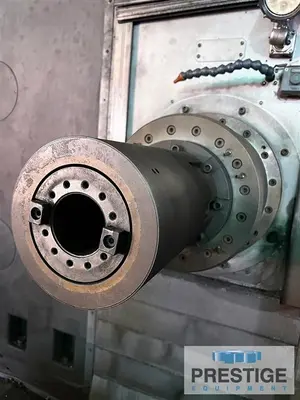

Spindle Diameter: 5.12"
Spindle Taper: BT #50
Vertical Head Travel, Y-Axis: 82.67"
Column Travel,(Left & Right), X-Axis: 157.48"
Spindle Travel, W-Axis: 27.55"
Table Travel, (In & Out), Z-Axis: 59.05"

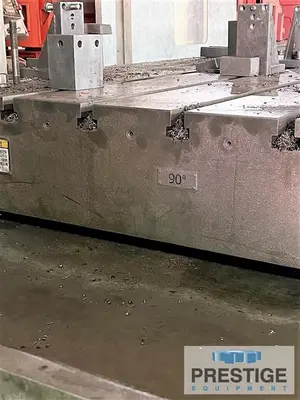

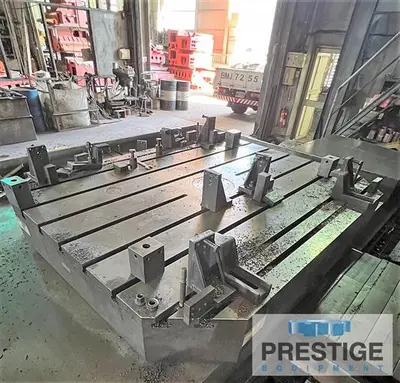

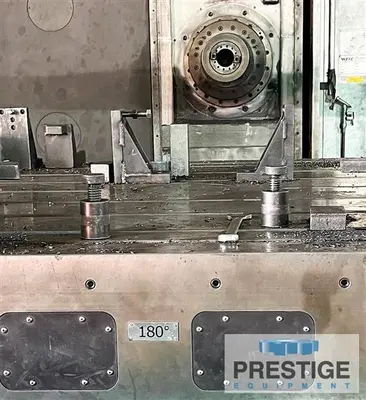

Built in Rotary Table: 70.86" x 78.74"
Table Index: .001
Distance from Spindle to Table Top: 3.1"-30.7"
Table Load Capacity: 26,400 lbs.
Spindle Speeds, Max: 2,500 RPM
Spindle Motor: 30 HP / 35 HP
Rapid Traverse Rate (X/Z): 590.55 IPM
Rapid Traverse Rate (Y): 472.44 IPM
Cutting Feed Rate: 0.039-196.85 IPM
Approximate Dimensions: 296"x 264" x 175"
Approximate Weight: 77,200 Lbs.
Equipped With:

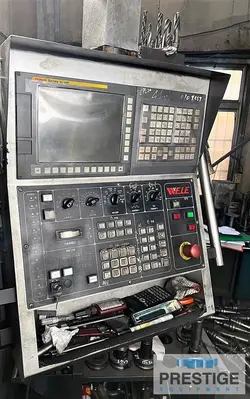

FANUC OiMF CNC Control

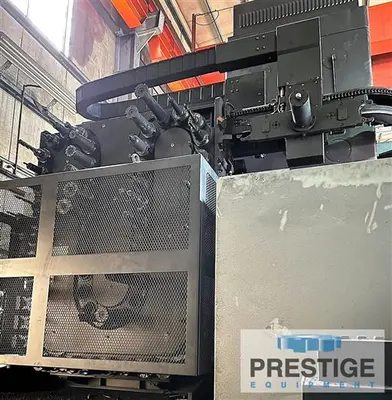

60-Station Automatic Tool Changer
Built In Rotary Table 0.001 table indexing (Full B-axis)
Centralized Lubrication System
Flood Coolant System
Rigid Tapping
X/Y/Z axis THK roller linear guide way
X/Y/Z axis Haidenhain linear scales
Spindle oil cooler
Hydraulic cooler
Air conditioner
Chip Conveyor
Features:
FANUC OiMF CNC Control
60-Station Automatic Tool Changer
Built In Rotary Table 0.001 table indexing (Full B-axis)
Centralized Lubrication System
Flood Coolant System
Rigid Tapping
Chip Conveyor
